Protein Binding, Molecular Recognition, and Allostery

Most of life is molecules bumping into each other, and once in a while two of them agree to stick. That sticking is not decoration. It is how a cell builds order out of a warm, crowded soup: a receptor finds its one ligand among ten thousand near-misses, an enzyme grabs its substrate, an antibody clamps a virus. The trick is that the sticking is never permanent. Binding is an equilibrium, a partnership that keeps forming and breaking, and the whole of this chapter comes down to one question: how tightly, and under what conditions, does a protein hold on?

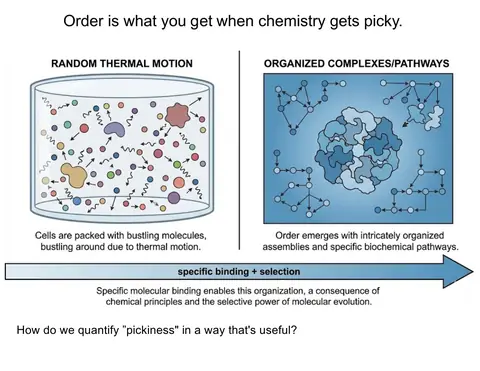

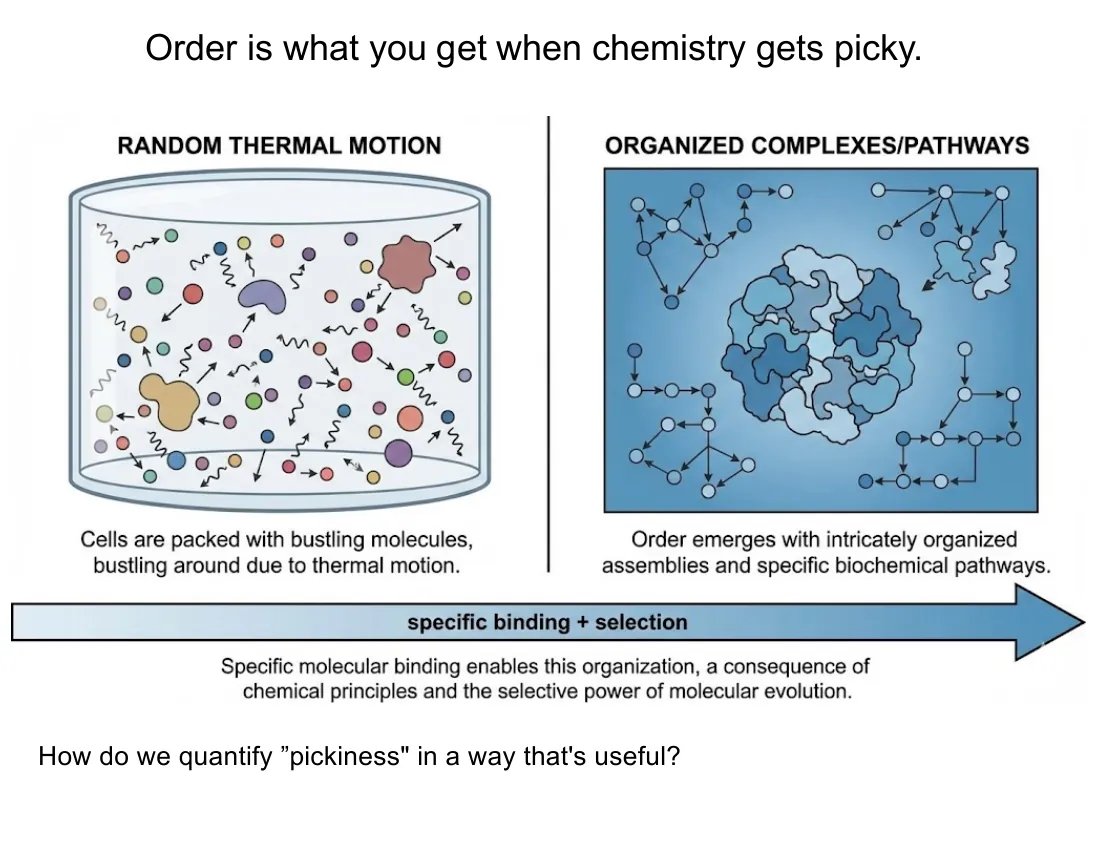

Molecular recognition: order is what you get when chemistry gets picky

A receptor is a protein that binds a specific ligand and ignores everything that looks almost right. The estrogen receptor pulls estradiol out of blood that also carries testosterone, a molecule that differs by a couple of atoms. That discrimination is the engine of cellular organization. If proteins bound everything, nothing in a cell would mean anything. Specificity is what lets a signal be a signal.

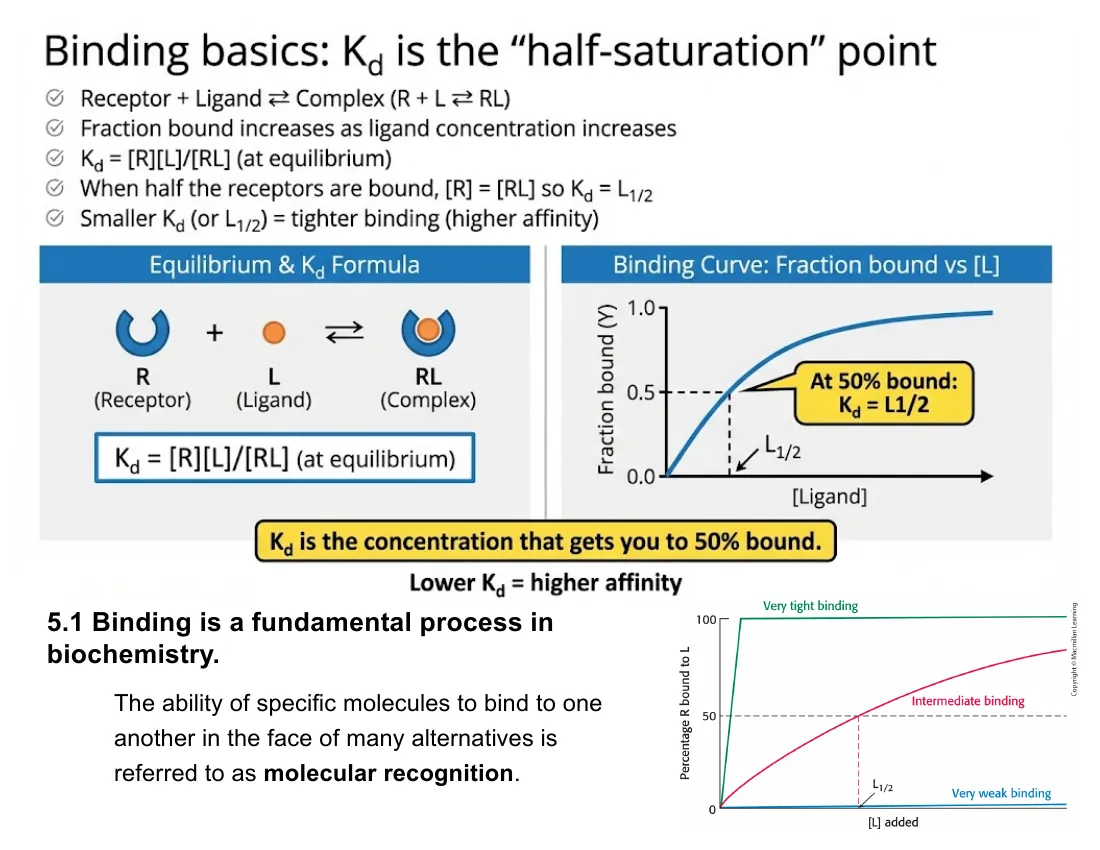

So we need a way to measure pickiness. Write a binding reaction in the direction it comes apart:

RL ⇌ R + L

The dissociation constant is the ratio of what is loose to what is bound:

Kd = [R][L] / [RL]

Kd has units of concentration, molarity, because it is a measure of how much free ligand it takes to keep half the receptor occupied. Read it as a stickiness rating with the scale running backwards: a small Kd means tight binding (very little ligand needed), a large Kd means loose. The single most common student error here is flipping it. Kd is not Ka. Lower is tighter.

Why Kd is the concentration at half-saturation

Here is the fact that makes Kd usable without a calculator. Set the free ligand concentration equal to the value where exactly half the receptor is bound, call it L½. At that point the bound and free receptor populations are equal, [R] = [RL], and they cancel:

Kd = [R][L] / [RL] = [L] when [R] = [RL], so Kd = L½

The dissociation constant is just the ligand concentration that gets you to half-occupancy. Plot fraction bound against ligand concentration and you get a hyperbola that rises steeply, then bends over and creeps toward full saturation without ever quite reaching it. (This clean result holds for a single binding site, no cooperativity, ligand in excess.)

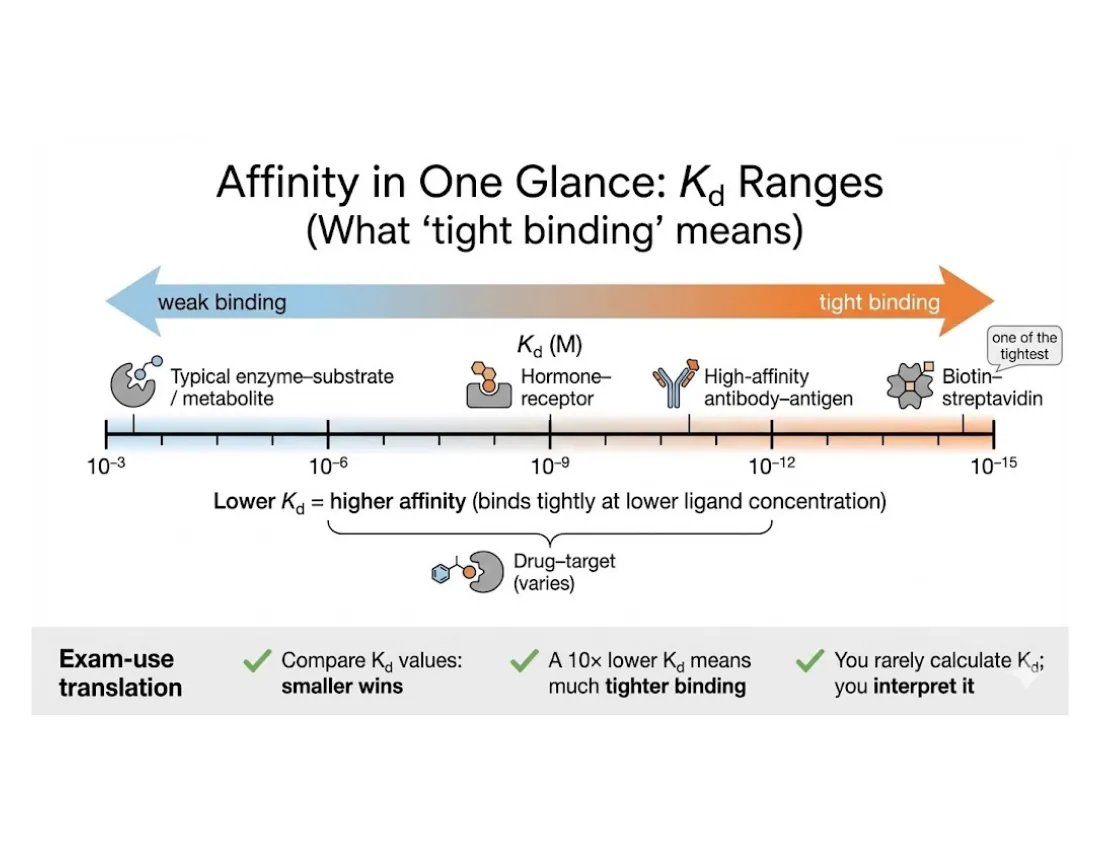

You will mostly interpret Kd values, not compute them. Three ranges are worth memorizing. Enzymes holding their metabolites bind in the millimolar range, loosely, because they need to let go fast. Hormones and their receptors bind in the nanomolar range. Antibodies, refined by your immune system, reach picomolar, and that refinement is not metaphorical: every booster shot selects B cells that make lower-Kd antibodies, so your protection literally gets stickier over time.

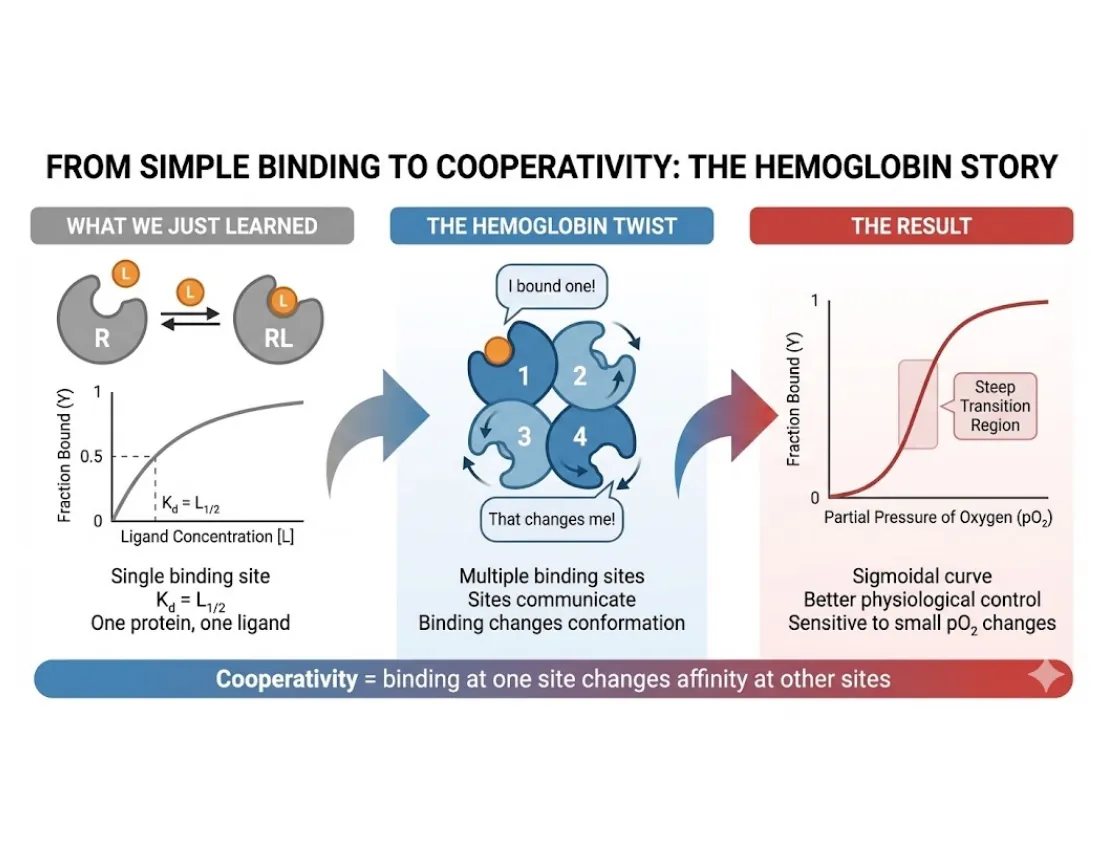

One site with one ligand gives a hyperbola. The moment a protein has several sites that can sense each other, the curve changes shape, and that is where the chapter’s real object enters.

The object: a cell that gave up everything to carry oxygen

The red blood cell is biology at its most committed. It ejected its nucleus, dumped its mitochondria, surrendered its ability to divide, all to become a bag of hemoglobin. About 5 million of them sit in a microliter of your blood, each one carrying roughly 300 million hemoglobin molecules, which works out to about 1.2 billion oxygen molecules per cell when it is full. They live about 120 days, and because your capillaries are narrower than the cells themselves, every trip through the microcirculation is a squeeze.

Work down through three scales and the machine reveals itself: the cell, then the protein (a tetramer of four chains), then the chemical business end, a heme group cradling a single iron atom. Start with the simple version of that protein before tackling the clever one.

Myoglobin: the simple reference

Myoglobin is the storage protein in muscle, one polypeptide chain wrapped around one heme. It binds oxygen with high affinity, holds it, and releases it only when oxygen gets truly scarce. Its binding curve is a plain hyperbola, the same shape as the Kd plot above, with a P50 (the pO₂ at half-saturation) of about 2 torr. No cooperativity, because there is nothing for a lone site to cooperate with. Myoglobin is the control experiment. When it leaks into the blood after a heart attack or crush injury, clinicians read that escaped storage protein as a marker of muscle damage.

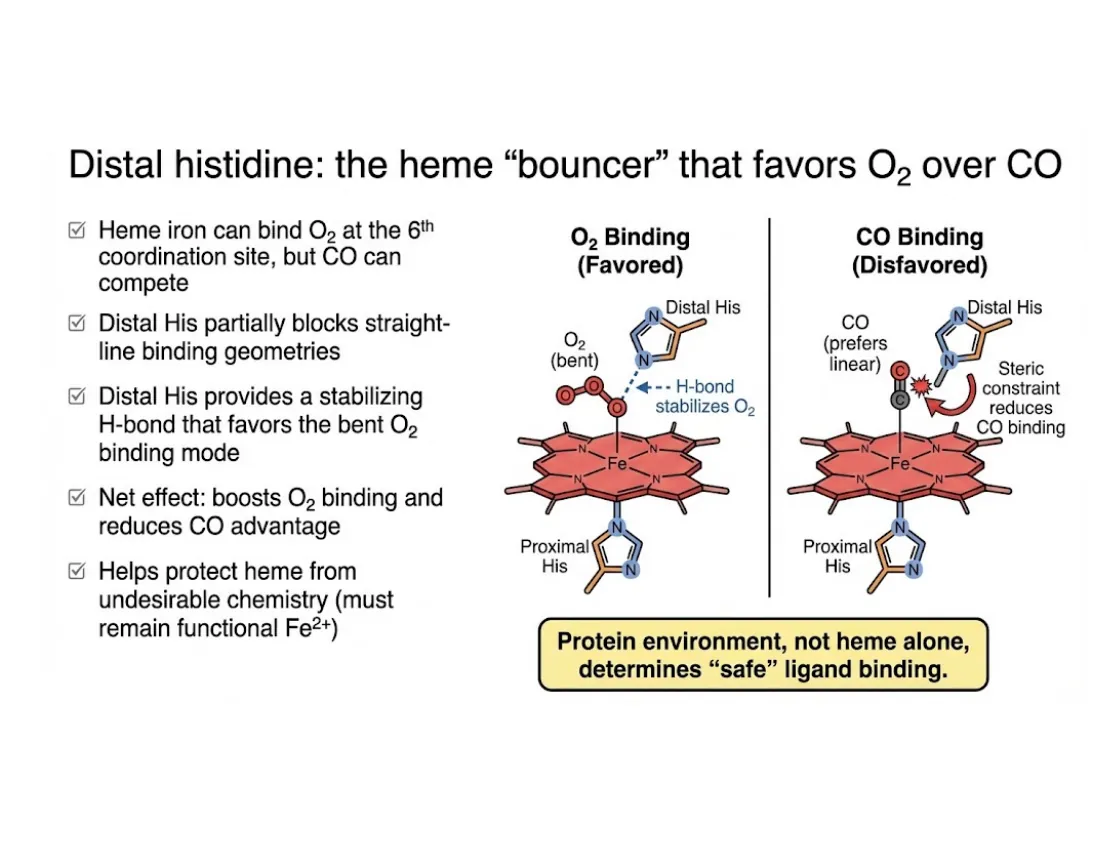

The chemistry of the heme is shared by both proteins. Heme is protoporphyrin IX with an iron(II) at its center. The iron makes four bonds to the porphyrin’s nitrogen atoms, holds a fifth bond to a histidine reaching up from the protein (the proximal histidine), and saves its sixth coordination site for oxygen. The iron must stay Fe²⁺; oxidize it to Fe³⁺ and you get methemoglobin, which cannot carry oxygen at all. Across the pocket sits the distal histidine, the bouncer. Oxygen binds bent, carbon monoxide prefers to bind straight, and the distal histidine bends the geometry in oxygen’s favor, cutting CO binding roughly 100-fold. That single steric trick is the only reason we tolerate the trace CO our own cells produce.

Hemoglobin and the conversation between subunits

Hemoglobin is four chains, two α and two β, arranged as a pair of αβ dimers (α₂β₂). It exists in two quaternary states. The T state (tense, the deoxy form, low oxygen affinity) is held shut by a web of salt bridges. The R state (relaxed, the oxy form, high affinity) is the open arrangement. The whole drama of cooperativity is the switch between them, and it begins with a movement smaller than an atom.

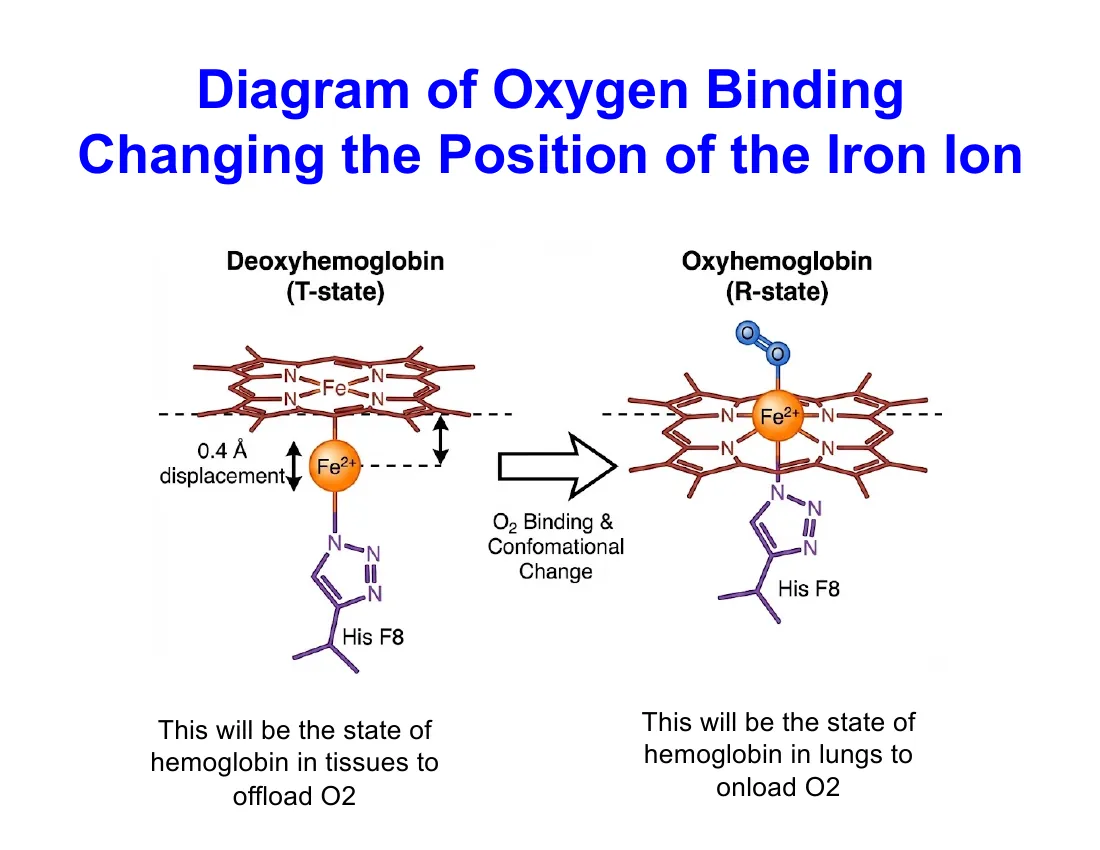

In the deoxy T state the iron is high-spin and slightly too big to fit the porphyrin hole, so it perches about 0.4 Å above the ring plane. When oxygen binds, the iron flips to low-spin, shrinks, and drops into the plane. That drop is about a quarter the width of a water molecule. But the iron is bonded to the proximal histidine, and the histidine sits on a helix (the F helix), and that helix presses against the neighboring subunit. So a 0.4 Å twitch at the iron is levered into roughly a 15° rotation of one αβ dimer against the other. Structure talks to structure. A protein takes a sub-ångström event and broadcasts it across the whole molecule, which is the most important single idea in this chapter and worth sitting with.

That movement has a clinical echo. Deoxyhemoglobin is paramagnetic (its iron carries unpaired electrons) and oxyhemoglobin is diamagnetic. Functional MRI reads exactly that difference: active brain regions pull in more oxygenated blood, the magnetic signal shifts, and an iron atom sliding into a porphyrin ring becomes detectable with a magnet from outside your skull.

Cooperativity, and why the curve goes sigmoid

There are two textbook models for how four subunits switch. In the concerted (MWC) model all four flip together, and ligand binding only nudges the T↔R balance. In the sequential (KNF) model each subunit changes one at a time. Real hemoglobin is a hybrid: sequential-like for the first one or two oxygens, then concerted-like after the third.

Ligand (O₂) concentration low

Effector: Inhibitor (BPG, low pH) None Activator

In R (high-affinity) state0%

Sites occupied (saturation)0%

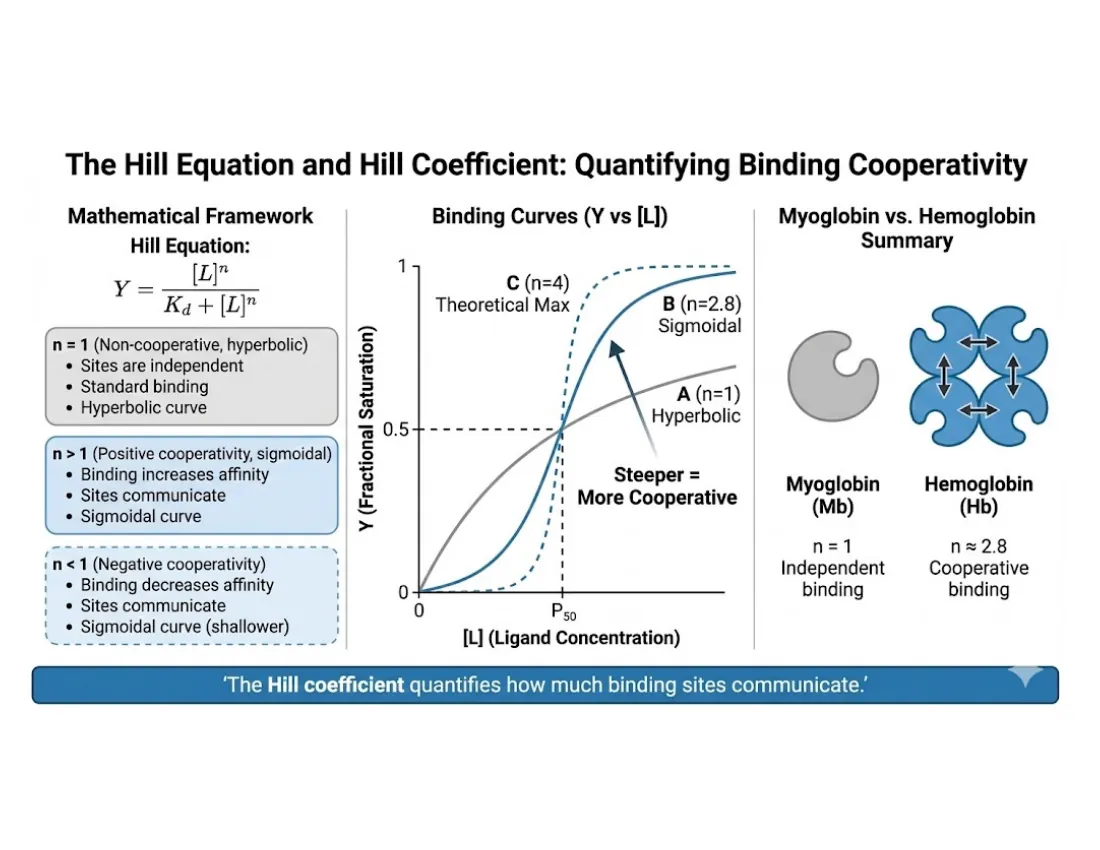

Cooperativity needs no new physics — just a population. Each binding event makes the R state a little more favorable, which raises affinity for the next ligand, which favors R still more. An inhibitor like 2,3-BPG stabilizes T and shifts the whole curve right (releasing more O₂ to hungry tissue); an activator stabilizes R and shifts it left. The single-subunit reference, myoglobin, has no T⇌R conversation at all, so its curve is a plain hyperbola.

The consequence is the famous shape. The first oxygen is the hardest to load, because it has to bind a subunit locked in the low-affinity T state. But binding it shifts the whole equilibrium toward R, so the second oxygen comes a little easier, the third easier still, the fourth easiest of all. The first O₂ is the lever that opens the door for the rest. Plot saturation against pO₂ and you no longer get a hyperbola. You get an S-shaped sigmoid, with a P50 around 26 torr (versus myoglobin’s 2). The Hill coefficient scores the teamwork: n_H = 1 means every site works alone (myoglobin), and hemoglobin’s n_H ≈ 2.8, out of a theoretical maximum of 4, means strong cooperation that stops short of the perfect teamwork an n_H of 4 would require.

Normal HbA Myoglobin + 2,3-BPG Acidosis / Bohr Exercise (all four) Fetal Hb Bar-headed goose CO poisoning

Hill coefficient n_H 2.8 P₅₀ (torr) 26

Y at lungs (100 torr)

—

Y at tissue (30 torr)

—

O₂ delivered

—

At n_H 2.8 and P₅₀ 26, hemoglobin delivers about two-thirds of its O₂ between lungs (100 torr) and resting tissue (20 torr). Hit "Myoglobin" to see a non-cooperative, high-affinity carrier give up only ~7%.

Why cooperativity exists: the delivery problem

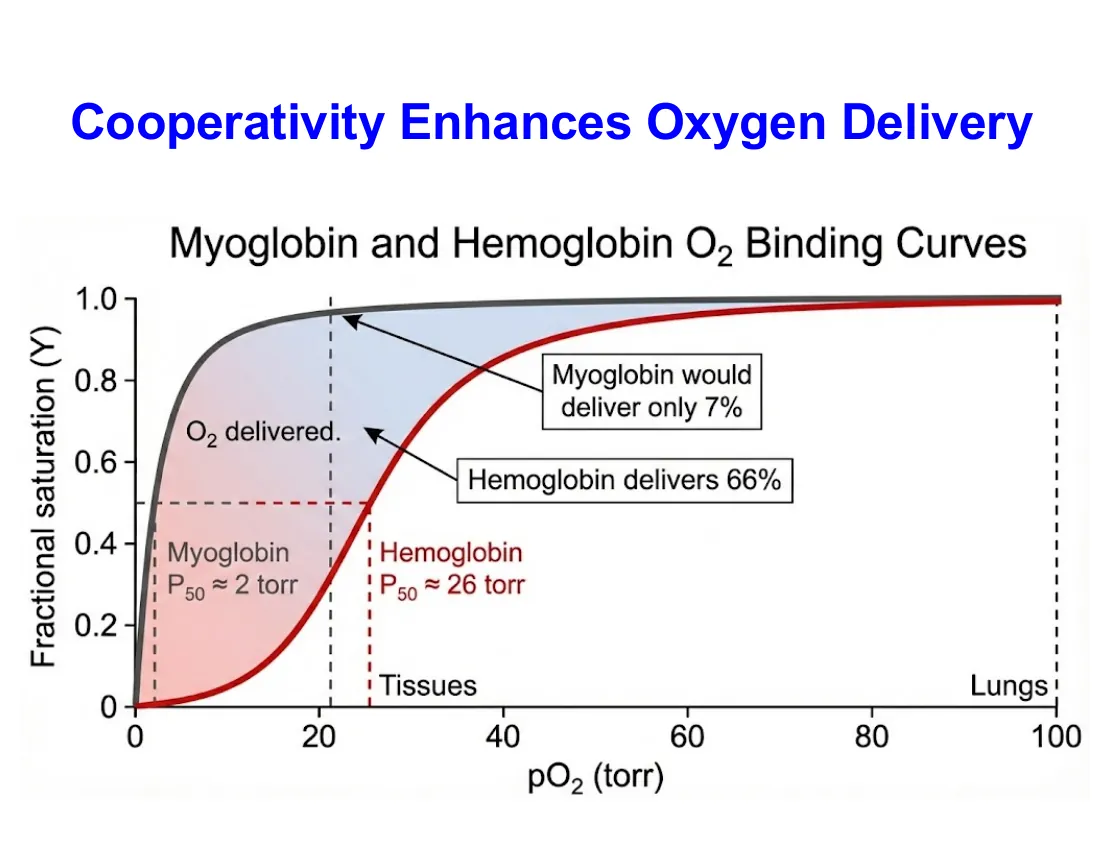

The sigmoid is engineering, not accident. Lungs sit at a pO₂ near 100 torr, resting tissue at 20 to 40 torr, and the steep part of hemoglobin’s S-curve falls right inside that window. The result is that hemoglobin gives up about 66% of its oxygen between lungs (~100 torr) and resting tissue (~20 torr). Myoglobin, non-cooperative and high-affinity, would unload only about 7% across the same gap: its hyperbola is already nearly saturated at tissue pressures, so it holds on instead of letting go. Cooperativity is what turns hemoglobin from a sponge that grips oxygen into a delivery truck that drops it where it is needed — and you can watch both numbers fall out of the Hill equation in the sandbox above, by switching between the Normal HbA and Myoglobin presets.

(A quick pressure primer for the numbers: 1 atmosphere is 760 torr, dry sea-level air is 21% oxygen so about 159 torr, and by the time air reaches the alveoli, humidified and mixed with CO₂, pO₂ has fallen to roughly 100 torr.)

Allosteric regulators: tuning the curve to demand

Cooperativity sets the baseline. Three regulators shift it, and all three stabilize the T state, right-shifting the curve so more oxygen unloads in tissue.

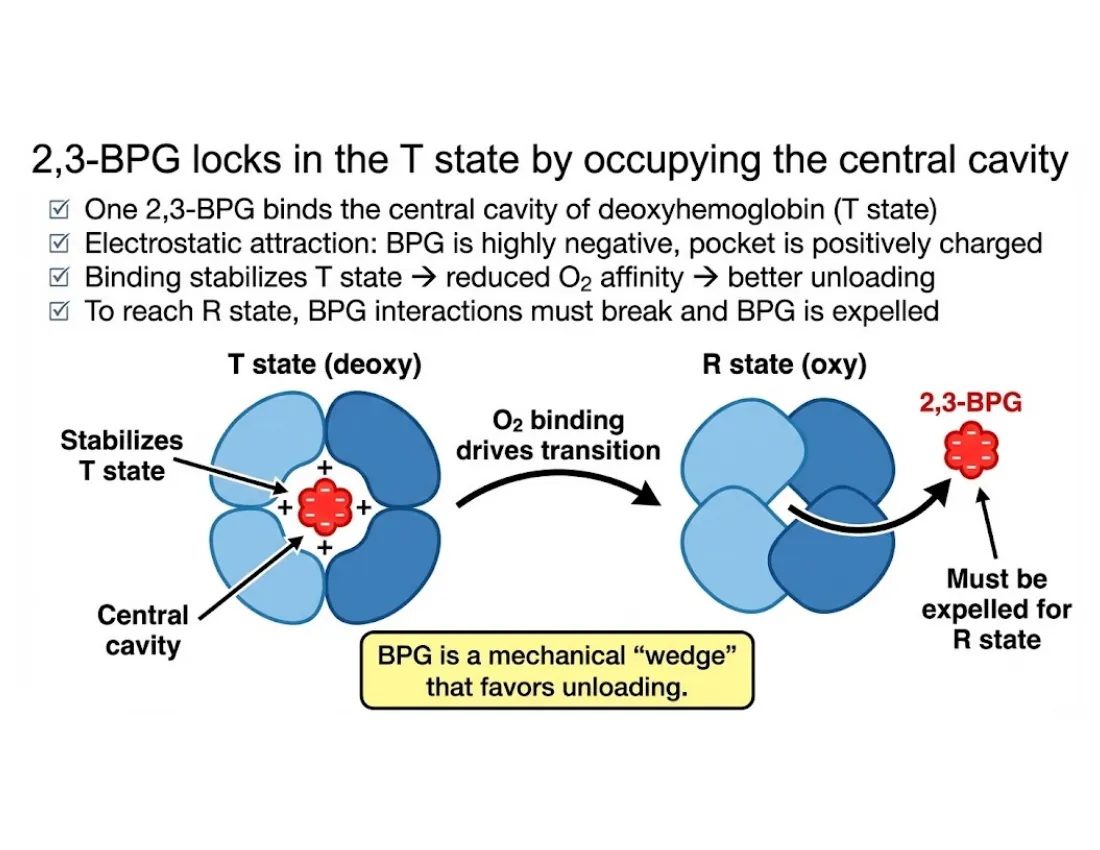

2,3-bisphosphoglycerate (2,3-BPG) is a small, ferociously charged anion (around four to five negative charges), present in red cells at nearly 1:1 with hemoglobin. It wedges into a central pocket between the β chains that exists only in the T state, acting as a mechanical doorstop that holds the molecule tense. Fetal hemoglobin (α₂γ₂) has a serine where the adult β chain has a histidine at position 143, so it binds 2,3-BPG weakly, stays at higher oxygen affinity, and pulls oxygen across the placenta from the mother’s blood. The same effector rises in your red cells over days at high altitude, which is part of how you acclimatize.

Hydrogen ions act through the Bohr effect. Protonating histidine β146 (favored at low pH) lets it form a salt bridge with aspartate β94 that locks the T state. Lungs run slightly alkaline (pH ~7.6) and favor loading; respiring tissue is more acidic (pH ~7.2) and favors unloading. Working muscle makes acid, and the acid tips hemoglobin toward tense exactly where a straining muscle needs the oxygen.

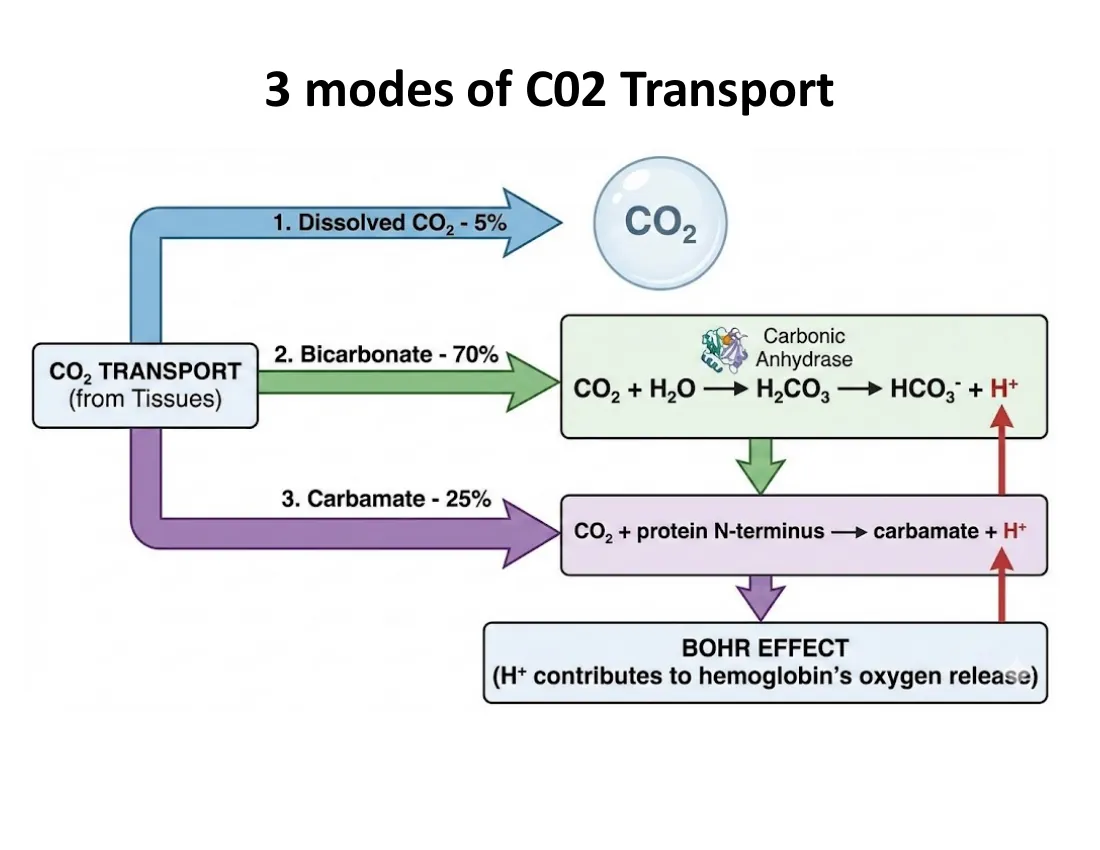

Carbon dioxide travels three ways: about 5% dissolved, about 70% as bicarbonate (made by carbonic anhydrase, the reaction that also supplies the Bohr protons), and the rest as carbamate groups bound to hemoglobin’s N-termini, which form their own T-stabilizing salt bridges. During exercise, four signals arrive at once: falling pO₂, falling pH, rising CO₂, and chronically rising BPG. Together they push oxygen extraction from about 25% at rest to about 70%.

Evolution exploits the same dials. The bar-headed goose flies over the Himalayas, and a single Pro→Ala swap in its α chain removes a van der Waals contact that would otherwise stabilize T. Its curve shifts left, toward higher affinity, so it can grab oxygen from air too thin for the rest of us. The same mutation would be a liability at sea level, where it would refuse to let go.

When structure lies: hemoglobin pathology

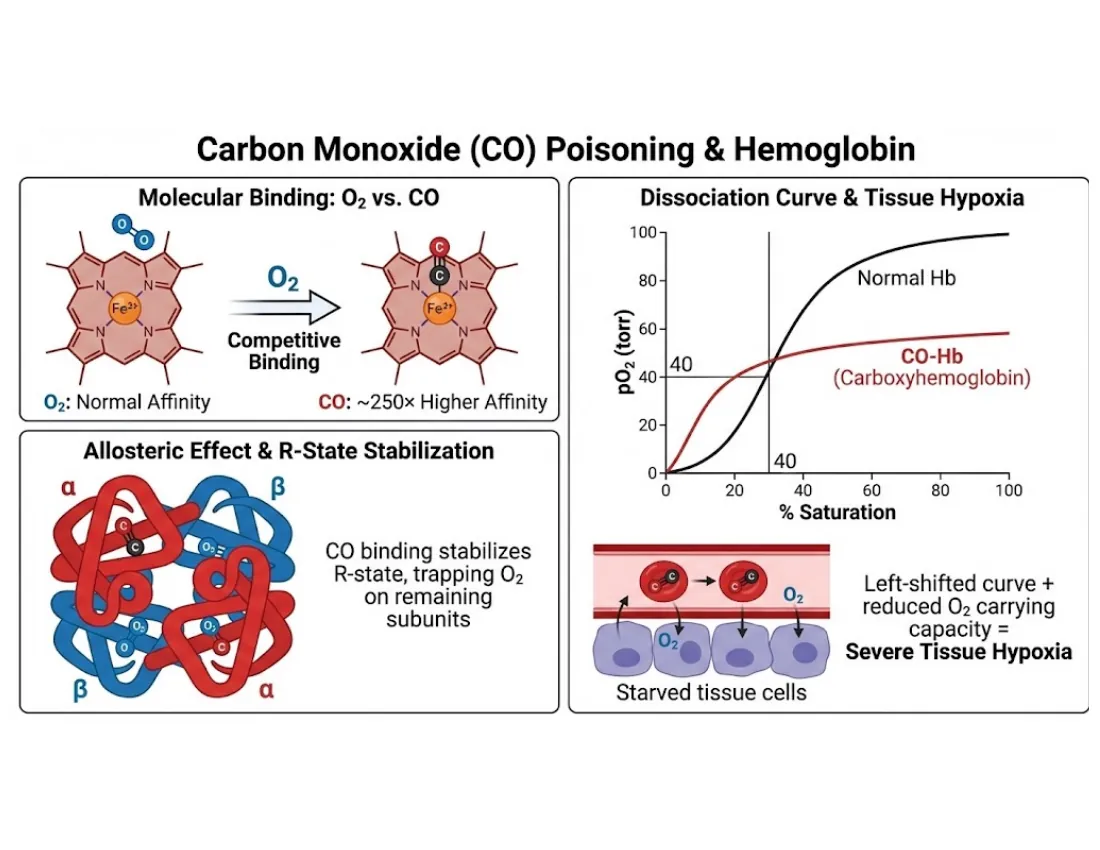

Carbon monoxide is the R-state lock. It binds the heme about 250-fold more tightly than oxygen does (the distal-histidine trick has already cut its intrinsic preference roughly 100-fold from a far larger number), and once bound it holds hemoglobin in the high-affinity R state so the oxygen still aboard refuses to release. The blood turns cherry-red, and a pulse oximeter, which cannot tell O₂-hemoglobin from CO-hemoglobin, reads falsely normal while tissues suffocate. The fix is to flood the system with oxygen, high-flow or hyperbaric, to compete the CO back off.

Then there is the textbook molecular disease. One amino acid. Glutamate to valine, at position 6 of the β chain. In the deoxy T state that hydrophobic valine is exposed on the surface, where it sticks to a hydrophobic patch (Phe85, Leu88) on a neighboring deoxy hemoglobin, which sticks to the next, and the molecules polymerize into stiff fibers that deform the red cell into a crescent. The trigger is deoxygenation, which is why crises come with exertion, cold, and dehydration, anything that drops tissue pO₂ and pushes hemoglobin into T. Carriers (one copy) are healthy and resist malaria, which is why the mutation persists. The newest treatment, Casgevy, approved in late 2023, uses CRISPR to disrupt the erythroid enhancer of BCL11A, lowering BCL11A in red-cell precursors and switching fetal hemoglobin back on — borrowing the same high-affinity γ chain that protects a fetus to protect an adult.

The thalassemias are the quieter, quantitative cousins: not a broken chain but the wrong amounts. Too few β chains and the leftover α chains precipitate and wreck the cell; too few α chains and the surplus β chains assemble into β4 tetramers (HbH) that bind oxygen tightly but with no cooperativity, a delivery truck that forgot how to open its doors. Matched α-to-β synthesis matters because imbalance is toxic either way.

That is the lesson in one line. A protein converts a 0.4 Å iron twitch into a ~15° dimer rotation to deliver oxygen exactly where it is needed, and a single wrong amino acid turns the same machinery into disease. Sickle-cell anemia is what happens when structure talks, and structure lies.
