The Citric Acid Cycle: Harvesting Electrons

The citric acid cycle does not make ATP. Its real product is high-energy electrons — three NADH and one FADH2 per acetyl-CoA — carried off to the electron transport chain where most of the cell's ATP is actually minted. Watch one carbon, count the cofactors, and notice that oxaloacetate comes out of every turn exactly as it went in: the cycle is a catalyst, not a fuel, which is the single fact most students get wrong.

Glycolysis handed off two pyruvates and warned us the real bottleneck was NAD+. The citric acid cycle is where that warning comes due. Almost every student arrives believing this cycle’s job is to make ATP. It is not. Per turn, the cycle makes exactly one high-energy phosphate. Its actual product is electrons — three NADH and one FADH2 — which it ships to the electron transport chain, where the bulk of your ATP is finally minted. Get that one reframe and the whole chapter clicks: the citric acid cycle harvests electrons; the ETC spends them.

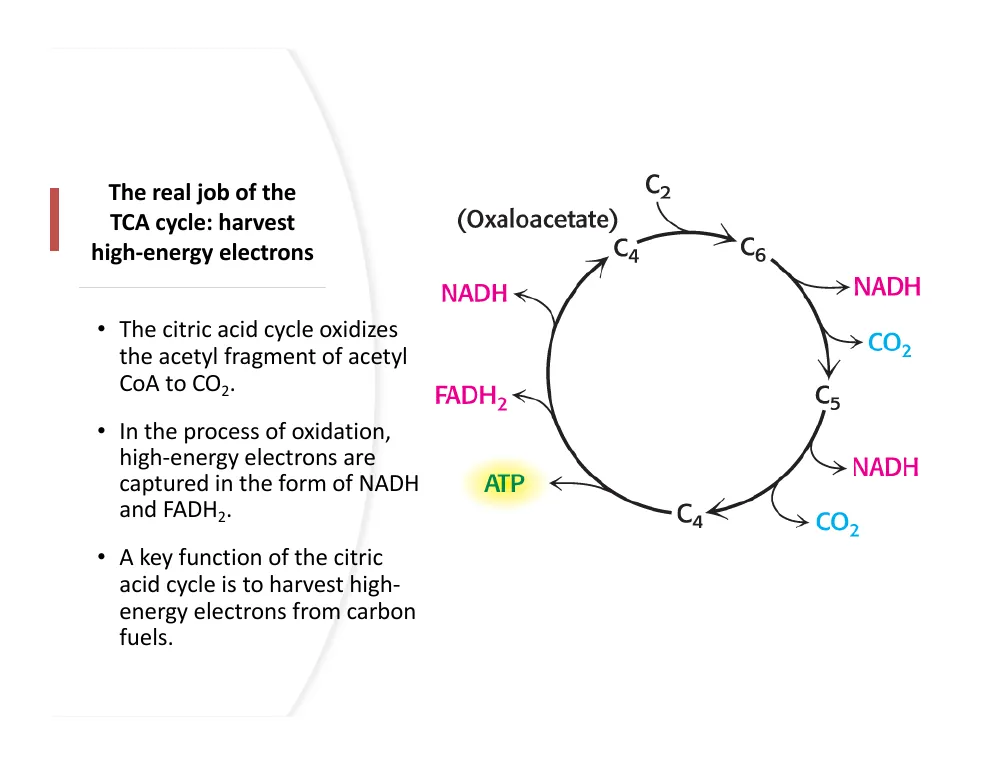

The cycle’s real job is to harvest electrons

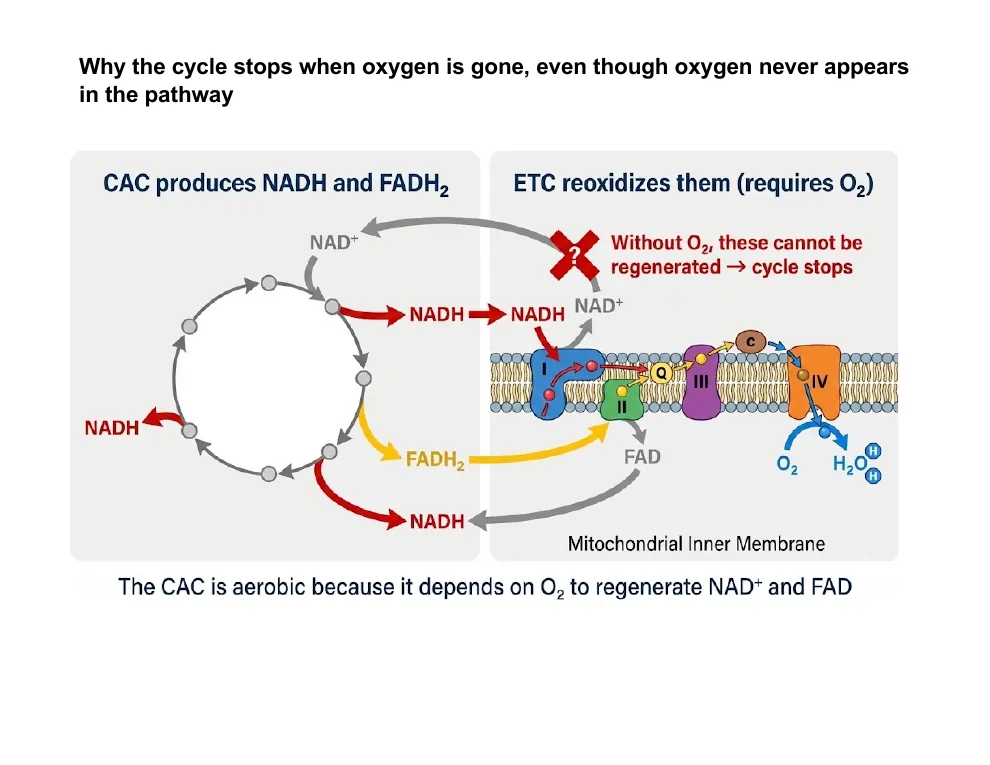

Think of NADH and FADH2 as rechargeable batteries. The cycle’s eight enzymes pry high-energy electrons off carbon and load them onto these carriers. The electron transport chain then recharges the carriers by emptying them, and oxygen powers that charger by accepting the spent electrons at the very end. This is why a favorite trick question — is O2 a substrate of the citric acid cycle? — has the answer no. Look at all eight reactions and you will not find oxygen in any of them. O2 is still absolutely required, but only indirectly: without it the ETC cannot regenerate NAD+, the cycle runs out of empty batteries, and the whole roundabout stalls within seconds. That distinction, required but not a substrate, is worth more than any mnemonic.

The bookkeeping for one acetyl-CoA is clean and worth memorizing: 3 NADH, 1 FADH2, 1 GTP, 2 CO2. The two carbons that leave as CO2 are the carbons being oxidized; the electrons stripped off them are the prize.

Oxaloacetate is a catalyst, not a fuel

Here is the misconception that sinks more exam answers than any other: students picture the cycle getting “used up,” as if oxaloacetate were burned away. It is not. Oxaloacetate (OAA) enters step 1, runs all the way around, and is regenerated unchanged at step 8. A single OAA molecule can run thousands of turns. The fuel that gets consumed is acetyl-CoA, fed in fresh each turn; OAA is the reusable jig the cell builds each acetyl group onto.

Krebs learned to look for exactly this kind of molecule from his earlier work on the urea cycle — find the thing that comes out unchanged, and you have found the catalyst at the heart of a cycle.

The citric acid cycle · 8 steps tap a step to reveal it
0 NADH0 FADH₂0 GTP0 CO₂
Click through the ring above and watch the tally climb to 3 NADH + 1 FADH2 + 1 GTP, then hit “run” and watch oxaloacetate come back to where it started. That regeneration is the catalytic payoff.

Burn the fuel, then rebuild the machine

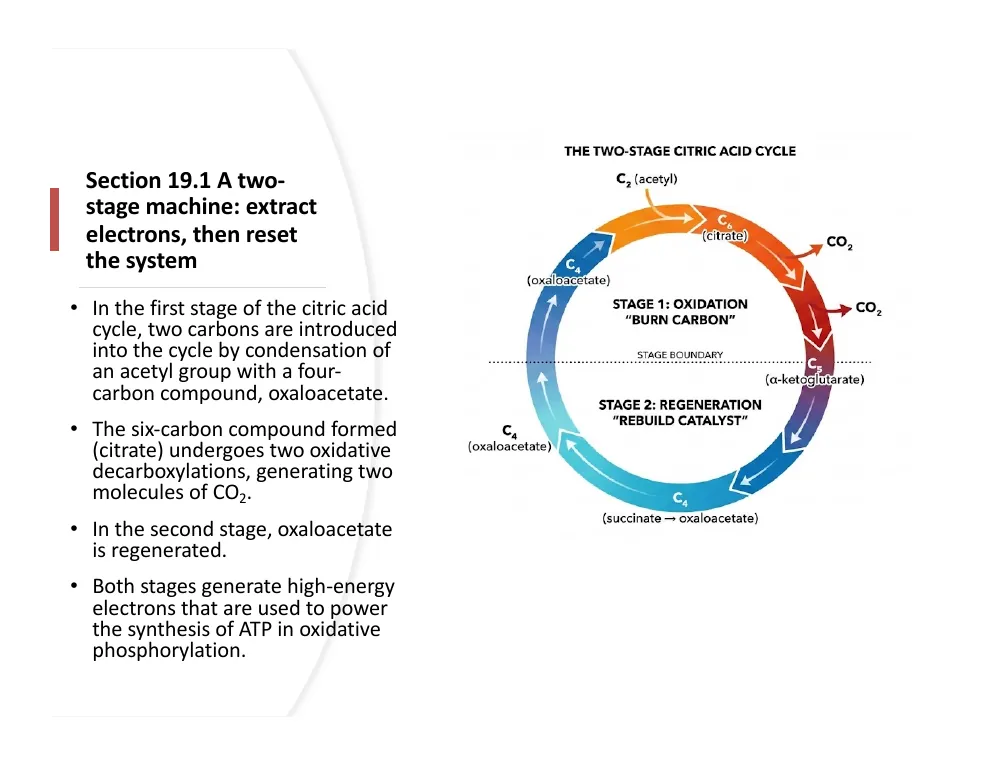

The cleanest way to hold eight enzymes in your head is to see the cycle as a two-stage factory. Picture a fireplace: Stage One burns the firewood down to CO2, and Stage Two sweeps the ashes into a new fireplace so you can burn again.

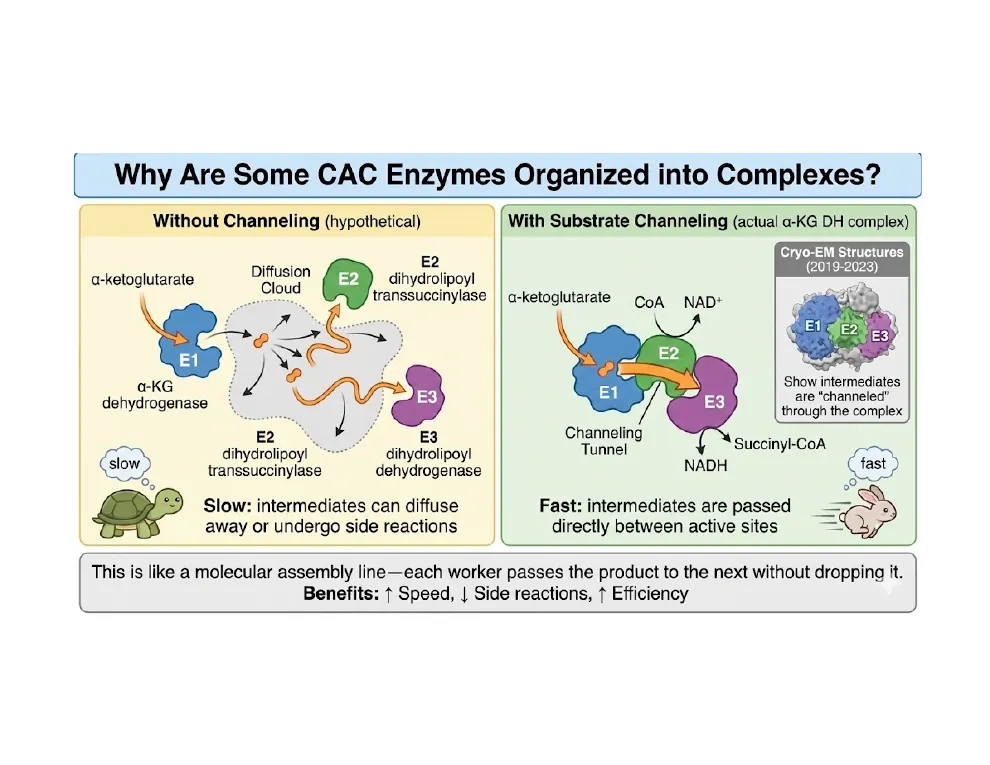

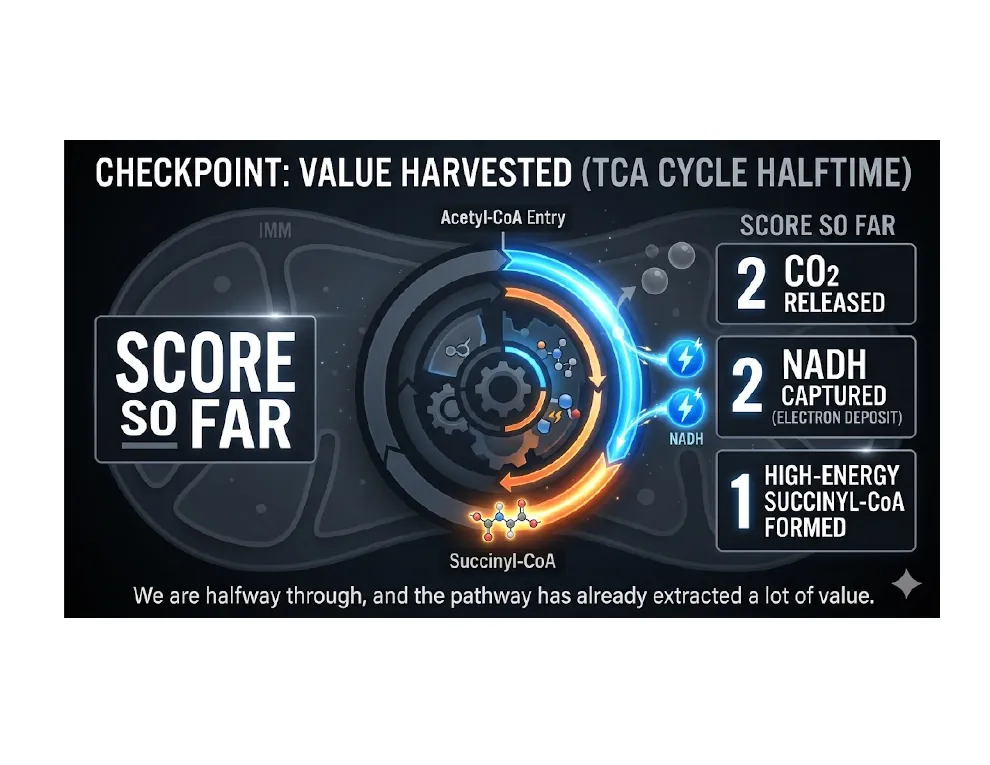

Stage One — the furnace (steps 1–4) burns the two acetyl carbons to two CO2 and banks 2 NADH. Citrate synthase condenses 4-carbon OAA with 2-carbon acetyl-CoA into 6-carbon citrate. Note the name: a synthase uses no ATP — the energy comes free from cleaving acetyl-CoA’s high-energy thioester. (Contrast a synthetase, which would spend a nucleotide triphosphate; you will meet one at step 5.) Aconitase then isomerizes citrate to isocitrate, simply relocating a hydroxyl group so it can be oxidized — no redox here. Isocitrate dehydrogenase performs the first oxidative decarboxylation, releasing CO2 #1 and NADH #1; this is the rate-limiting step and the cycle’s main throttle. The α-ketoglutarate dehydrogenase complex performs the second, releasing CO2 #2 and NADH #2. That complex is the structural and mechanistic twin of pyruvate dehydrogenase — same E1/E2/E3 architecture, same five cofactors (TPP, lipoic acid, CoA, FAD, NAD+), same substrate channeling that tunnels intermediates from one active site to the next without ever letting them diffuse free.

Stage Two — the rebuilding crew (steps 5–8) regenerates OAA and banks 1 GTP, 1 FADH2, and 1 NADH. Succinyl-CoA synthetase is the cycle’s lone substrate-level phosphorylation: cleaving succinyl-CoA’s thioester drives GDP to GTP through a phosphohistidine intermediate. Succinate dehydrogenase is the odd one out — it sits in the inner mitochondrial membrane and is Complex II of the ETC, feeding electrons straight into the chain. It uses FAD instead of NAD+ because oxidizing a plain C–C bond yields too little energy for NAD+. Fumarase hydrates fumarate to L-malate, and malate dehydrogenase regenerates OAA with NADH #3, closing the ring. That last step is unfavorable in isolation, but citrate synthase devours OAA the instant it appears, pulling the reaction forward. The steps are coupled, not independent.

Where memorization fails and reasoning begins

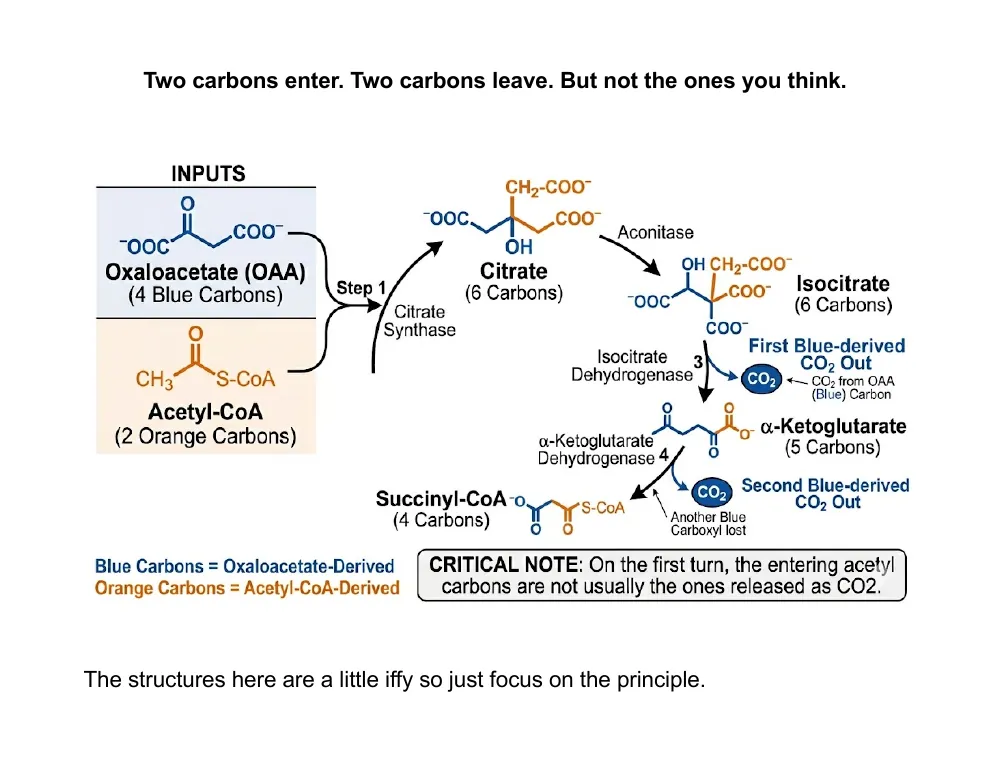

Trace a labeled carbon and something surprising happens. The four-carbon intermediate becomes symmetric at succinate, so from there on the cell cannot tell the two ends apart. The carbons that leave as CO2 in any given turn are not the carbons that just entered as acetyl-CoA; those entering carbons stay in the molecule and only exit on later turns. You cannot brute-force this with memory; you have to reason about symmetry. The carbon-tracking mode in the interactive grays out the two acetyl carbons at succinate, the moment the bookkeeping stops being trivial.

Follow the carbons through one turn⚙ original · interactive

Step 1 / 9
CO₂ released this turn: 0 / 2 — both oxaloacetate-derived

The net is honest — two carbons in as acetyl-CoA, two out as CO₂. But in this one turn the CO₂ comes from oxaloacetate, while your labeled acetyl carbons stay in the molecule. Only after succinate's symmetry scrambles them, over later turns, do they leave. This is the classic isotope-labeling result, and the reason "two in, two out" is true on the books but misleading atom-by-atom.

The throttle: ATP says stop, ADP and calcium say go

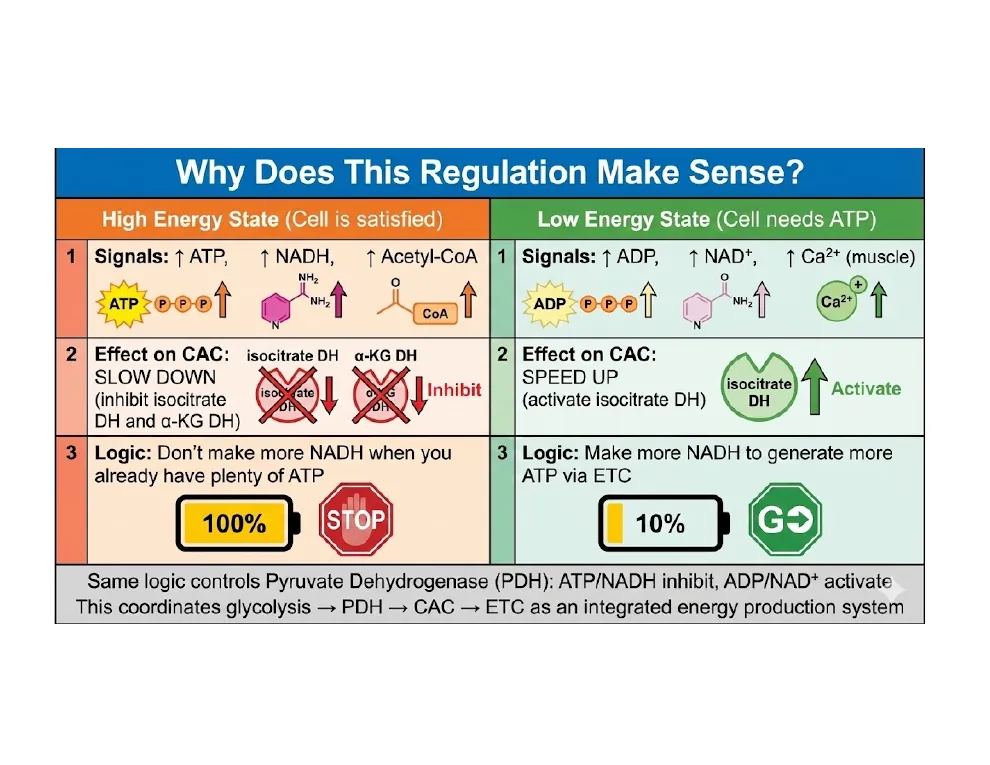

The cell is financially literate, and it regulates the cycle by reading its own energy charge. The two control points are the two irreversible oxidative decarboxylations: isocitrate dehydrogenase and α-ketoglutarate dehydrogenase. The rule is simple: ATP and NADH = STOP (the cell is rich, no need to burn more), ADP, NAD+, and Ca2+ = GO. Calcium is the exercise signal — when a muscle contracts, the same Ca2+ released to drive contraction directly activates the cycle, matching fuel-burning to demand. Pyruvate dehydrogenase gates entry upstream by the same logic.

Amphibolic, anaplerotic, and clinical

The cycle is amphibolic — it runs in both directions of metabolism. Its intermediates are siphoned off to build things: citrate exports for fatty-acid synthesis, α-ketoglutarate becomes glutamate and other amino acids, succinyl-CoA builds heme, and OAA feeds gluconeogenesis. Drain intermediates and you would deplete OAA, so the cell refills it by anaplerosis — chiefly pyruvate carboxylase, which adds CO2 to pyruvate to make OAA and is switched on by acetyl-CoA in a smart feedforward signal (“fuel is arriving; build more of the jig”).

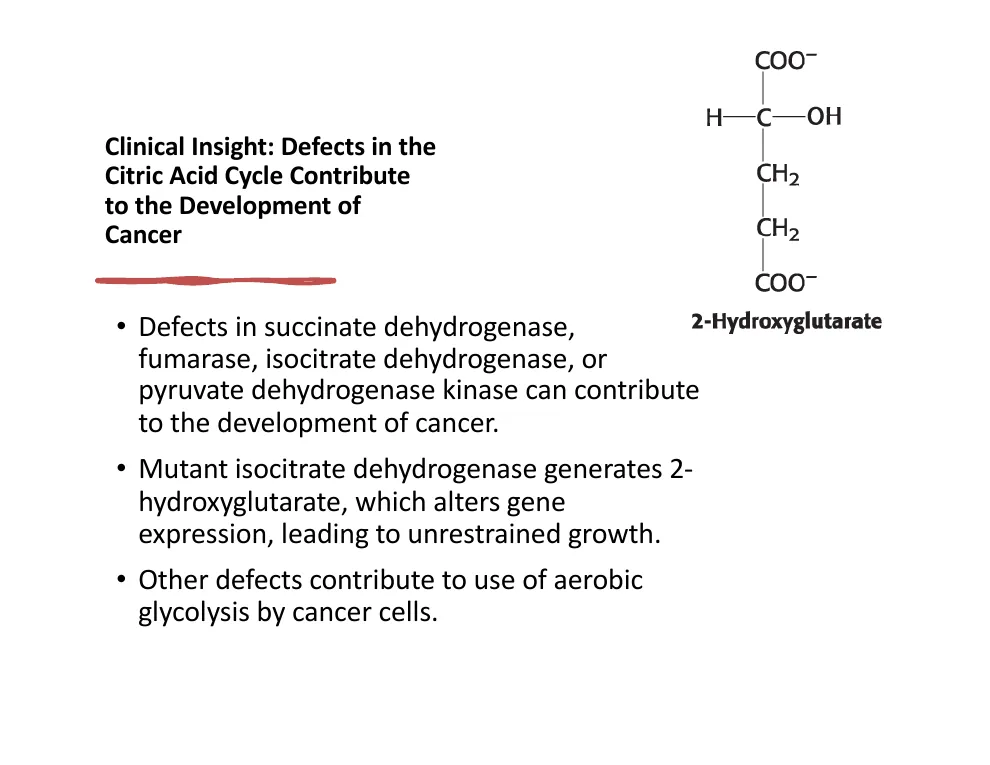

The clinical payoffs are striking. Mutations in succinate dehydrogenase and fumarase let succinate and fumarate pile up as oncometabolites that drive paragangliomas and kidney cancer; mutant isocitrate dehydrogenase makes 2-hydroxyglutarate, scrambling the epigenome in gliomas and leukemias, and IDH inhibitors are now real drugs. The Warburg effect — tumors running glycolysis hard even with oxygen available — is the same metabolic rewiring seen from the front door.

The ATP math, and what comes next

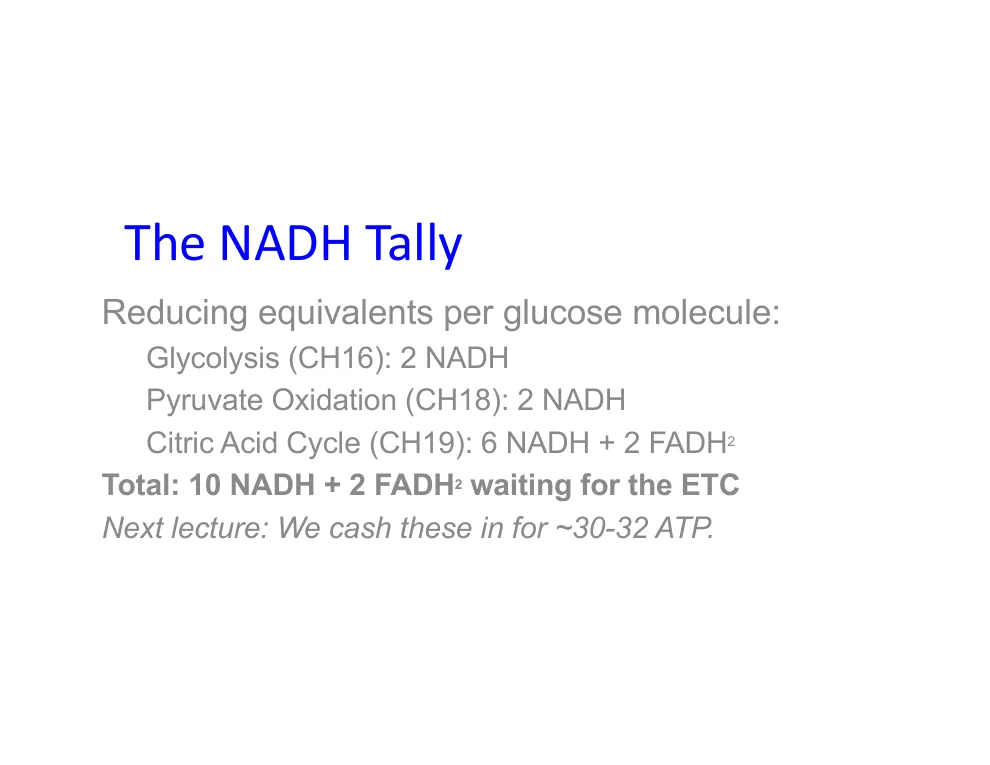

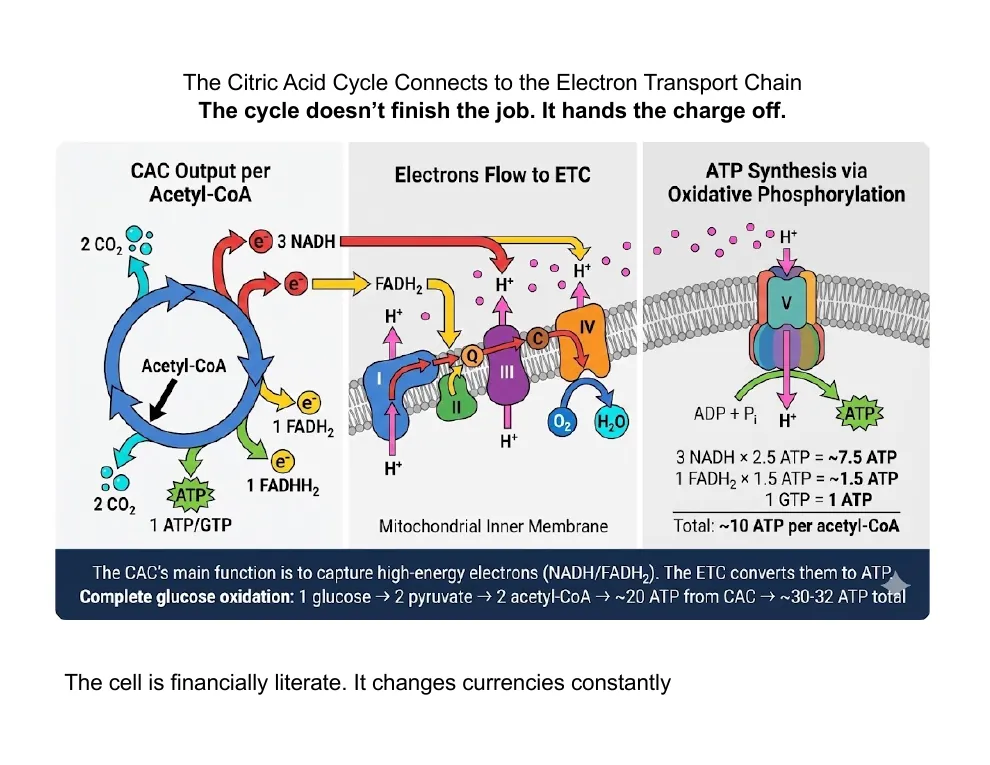

Now cash the batteries. Each NADH is worth about 2.5 ATP at the ETC, each FADH2 about 1.5, and the GTP counts as one: 3×2.5 + 1×1.5 + 1 ≈ 10 ATP per acetyl-CoA, which works out to roughly 30–32 ATP per glucose once you add glycolysis and pyruvate oxidation. But notice — almost none of that ATP was made here. The cycle’s job was to fill the carriers. Cashing them is the subject of the next chapter, oxidative phosphorylation and the electron transport chain, where oxygen finally takes the stage.

How we measure it

Warburg manometry (respirometry)

A sealed flask on a manometer measures the gas a tissue exchanges — O2 consumed, CO2 released — in real time. Krebs used minced pigeon-breast muscle on Warburg's manometer to watch respiration speed up when he added an intermediate, the assay that built the cycle. Its modern descendant is the Seahorse analyzer, which reads cellular oxygen consumption to fingerprint mitochondrial function.

Selective enzyme inhibition (pathway dissection)

Jam one step with a specific poison, then see which intermediate floods and which runs dry — that pattern reveals the order of the steps. Malonate blocks succinate dehydrogenase and backs up succinate; fluoroacetate blocks aconitase and backs up citrate. This 'poison and watch the traffic jam' logic is exactly how Krebs proved the sequence was a cycle.

Isotopic carbon tracking

Label a carbon with ¹³C or ¹⁴C and trace where it lands turn by turn. This is the only way to see that the carbons leaving as CO2 in one turn are not the carbons that just entered — and that after succinate the molecule becomes symmetric, so the two ends become indistinguishable. It turns 'memorize the cycle' into 'reason about the cycle.'
