Amino Acids: How One Side Chain Decides Everything
Twenty amino acids share one backbone, so what makes them different — and why can a single swap among them turn a healthy protein into a disease? The answer is the side chain. One idea drives the whole lesson: the R group sets the chemistry, and charge, pKa, the zwitterion, and the titration curve all fall out of it. It ends on the Glu→Val swap behind sickle cell.
All twenty amino acids are built on one backbone. Same alpha-carbon, same carboxyl group, the same amino nitrogen, the same lone hydrogen. The only thing that differs is one attachment — the side chain, the R group. And yet swapping one amino acid for another at a single position in one protein is enough to cause sickle cell disease.

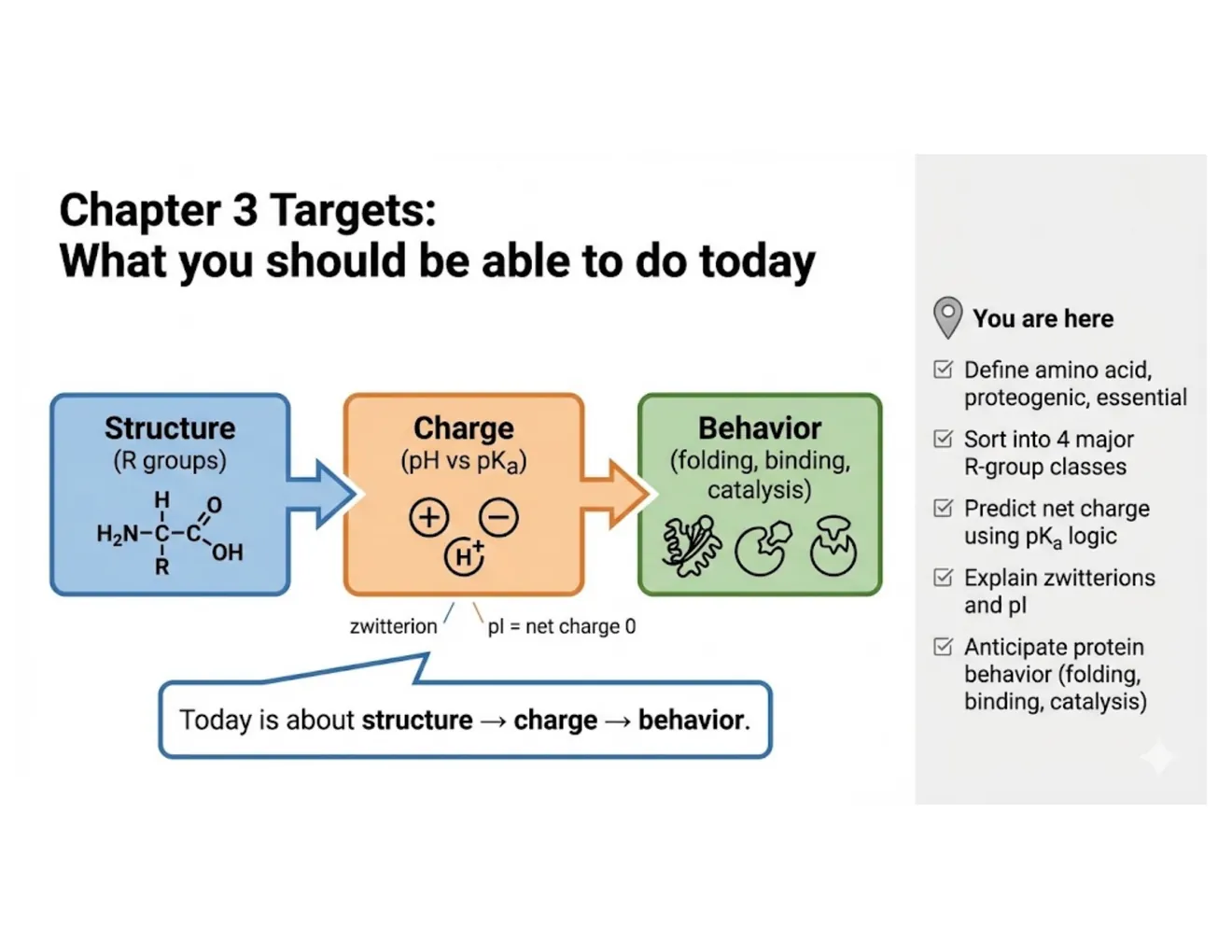

So here is the question this lesson turns on: if the scaffold is identical, how can one side chain decide so much? The answer runs in a straight line — structure sets charge, charge sets behavior — and it is one of the most useful chains of reasoning in biochemistry.
The idea: the backbone is shared, the side chain is everything
Every amino acid is a central carbon — the alpha-carbon — wearing four groups: an amino group (−NH₂), a carboxyl group (−COOH), a hydrogen, and a distinctive R group. Three of those four are the same across the set, with one twist: proline’s side chain loops back onto its own backbone nitrogen, so its amino group is a secondary amine. The R group is the variable, and it carries all the personality: its size, its charge, whether it loves or flees water, whether it can react.
Each color is a side-chain family. Click a family above to isolate it, or click any residue for its role.
Side-chain chemistry is destiny: nonpolar residues bury in the water-fearing core, polar and charged ones face the water or line active sites, and the three "specials" (glycine's flexibility, proline's kink, cysteine's disulfide) bend the rules on purpose.

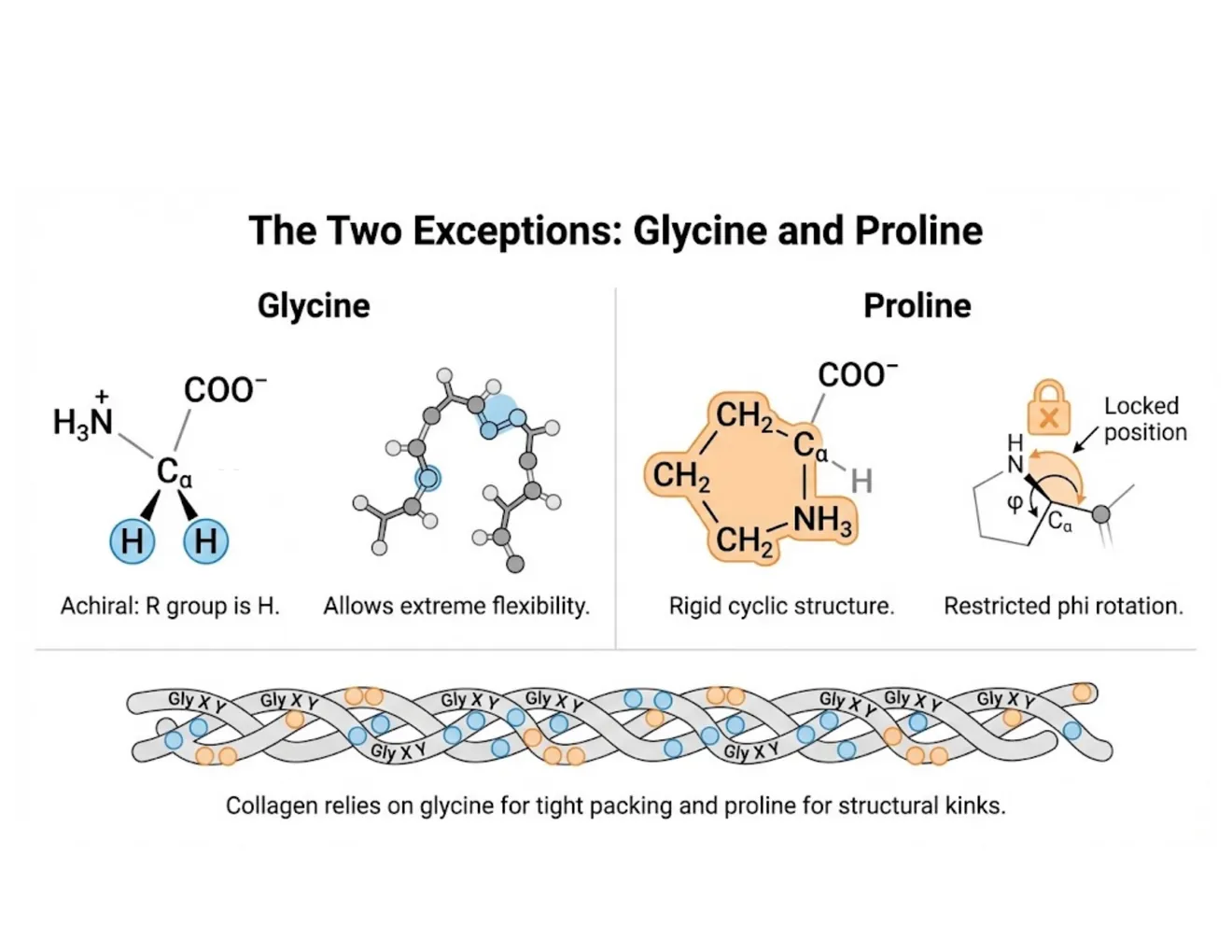

That four-groups-on-one-carbon arrangement has a consequence. When all four are different, the carbon is chiral — it has two non-superimposable mirror images, L and D, like your two hands. Proteins are built almost exclusively from the L form. The lone exception is glycine, whose R group is just another hydrogen; with two identical groups, its alpha-carbon is no longer chiral. Glycine is the only achiral amino acid, and that simplicity is exactly why it shows up at the tight turns where a protein needs to fold back on itself.
Chirality has a body count. Thalidomide was sold in the 1950s as a sedative; one mirror-image form calmed morning sickness, the other caused severe birth defects in roughly ten thousand children. Same atoms, opposite hand, opposite outcome.
Sort the R groups by what they do and four families appear: hydrophobic (greasy hydrocarbon and aromatic chains that bury themselves in a protein’s core, away from water), polar but neutral (the hydroxyls of Ser, Thr, Tyr; the amides of Asn, Gln; the reactive thiol of Cys), positively charged (Lys, Arg, His), and negatively charged (Asp, Glu). Which family a residue belongs to predicts where it sits and what it does. Ask where you would put an amino acid in a membrane-spanning helix, surrounded by lipid, and the answer is forced: hydrophobic.
Charge depends on pH: the zwitterion and the one rule

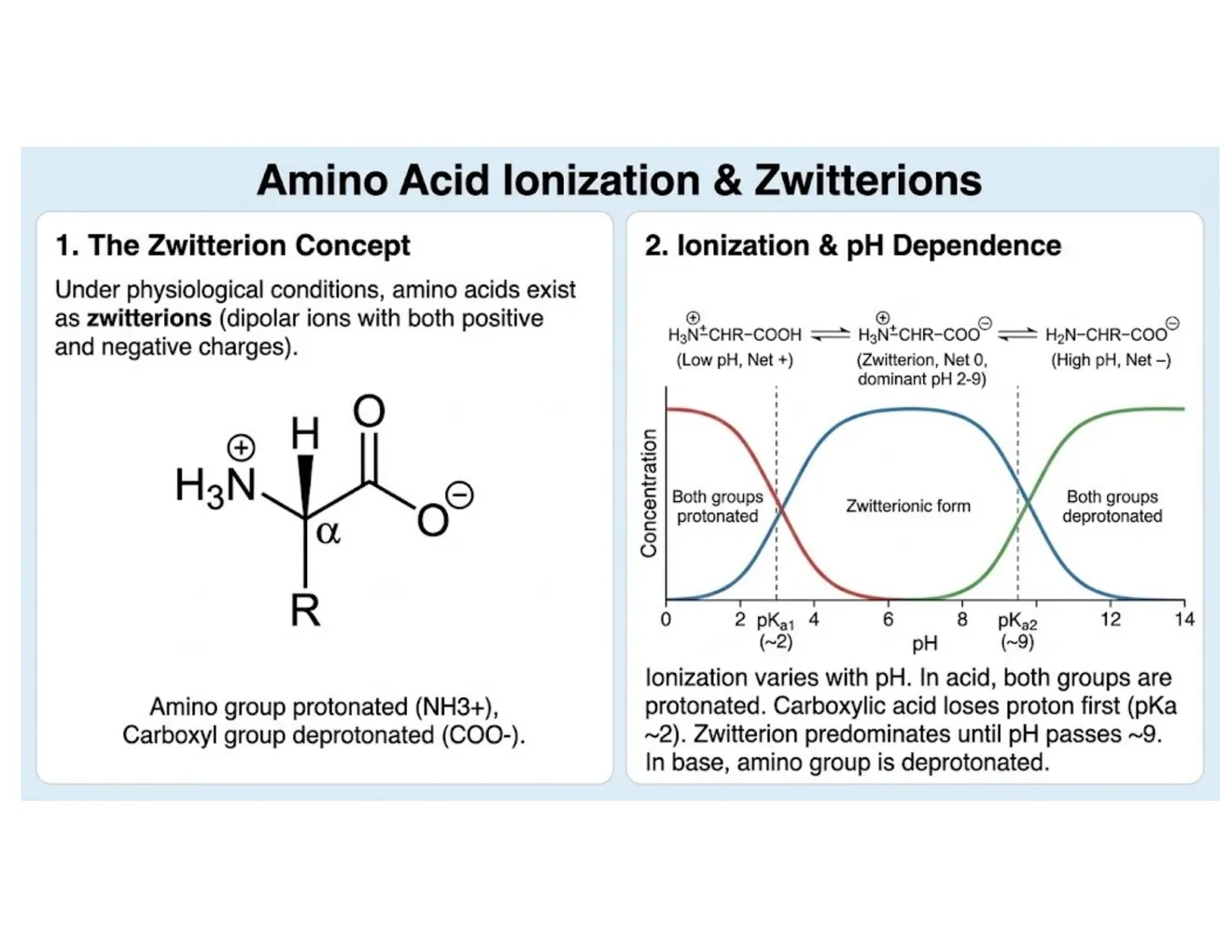

Here is where the side chain starts doing chemistry. At the pH inside your body — about 7.4 — an amino acid is not neutral and not singly charged. Its carboxyl group has given up a proton to become −COO⁻, and its amino group has grabbed one to become −NH₃⁺. It carries a positive and a negative charge at the same time. That double-charged, net-neutral form is a zwitterion.

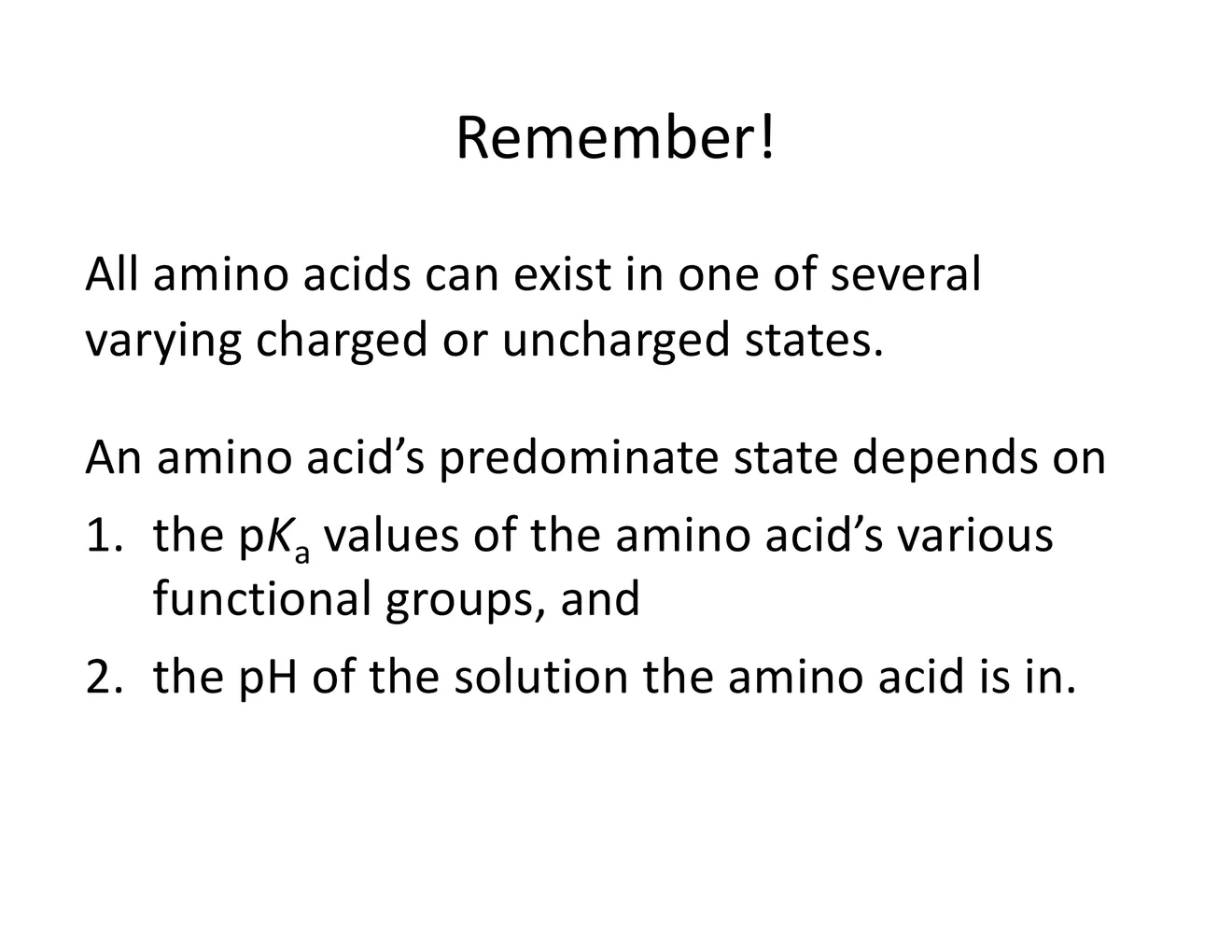

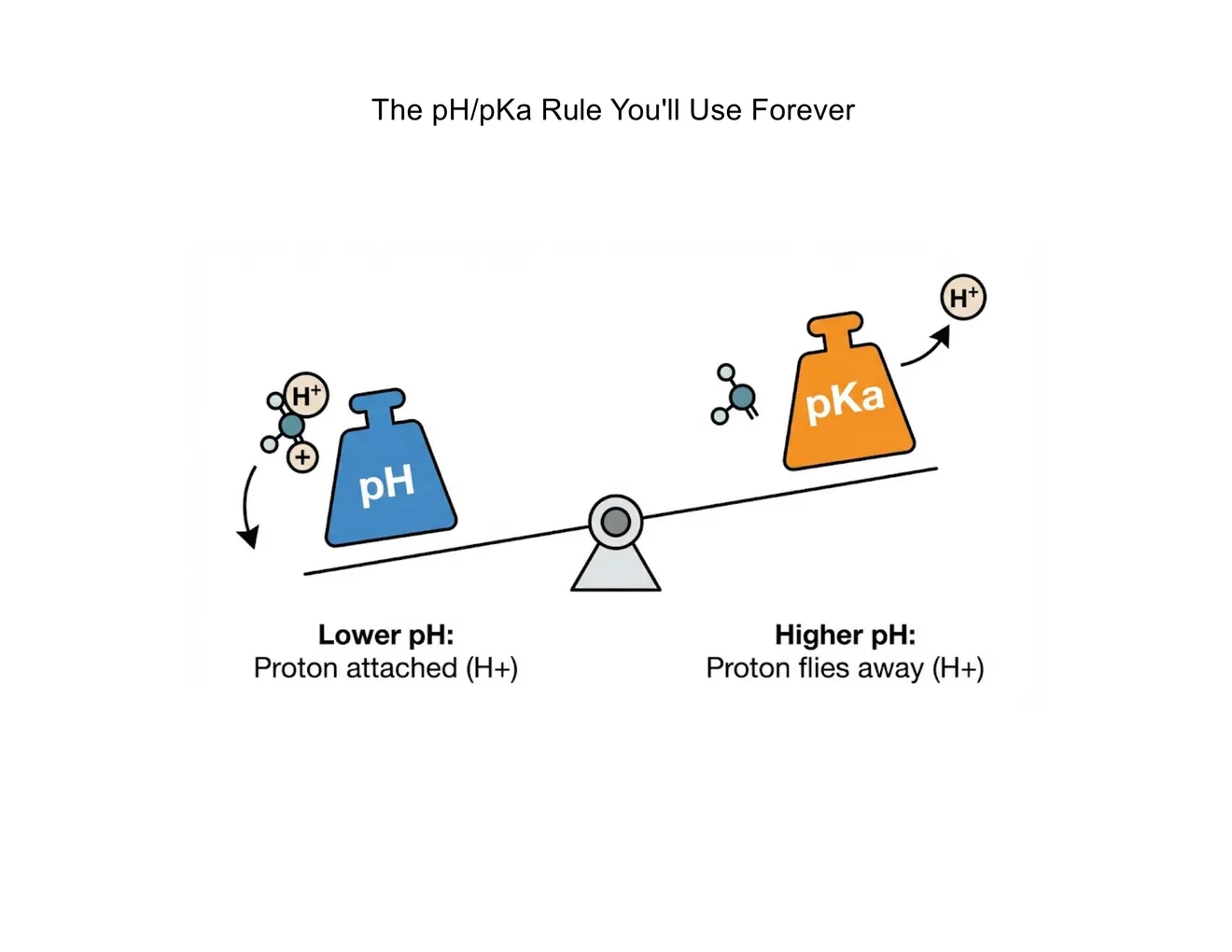

What decides whether any given group holds its proton? One rule, and you will use it for the rest of biochemistry:
pH > pKa → deprotonated. pH < pKa → protonated.
The pKa is the pH at which a group is half-protonated. Sit above it and the group has mostly let go of its proton; sit below it and the group mostly holds on. Anchor everything to physiological pH and you can read any amino acid’s charge off its pKa values.

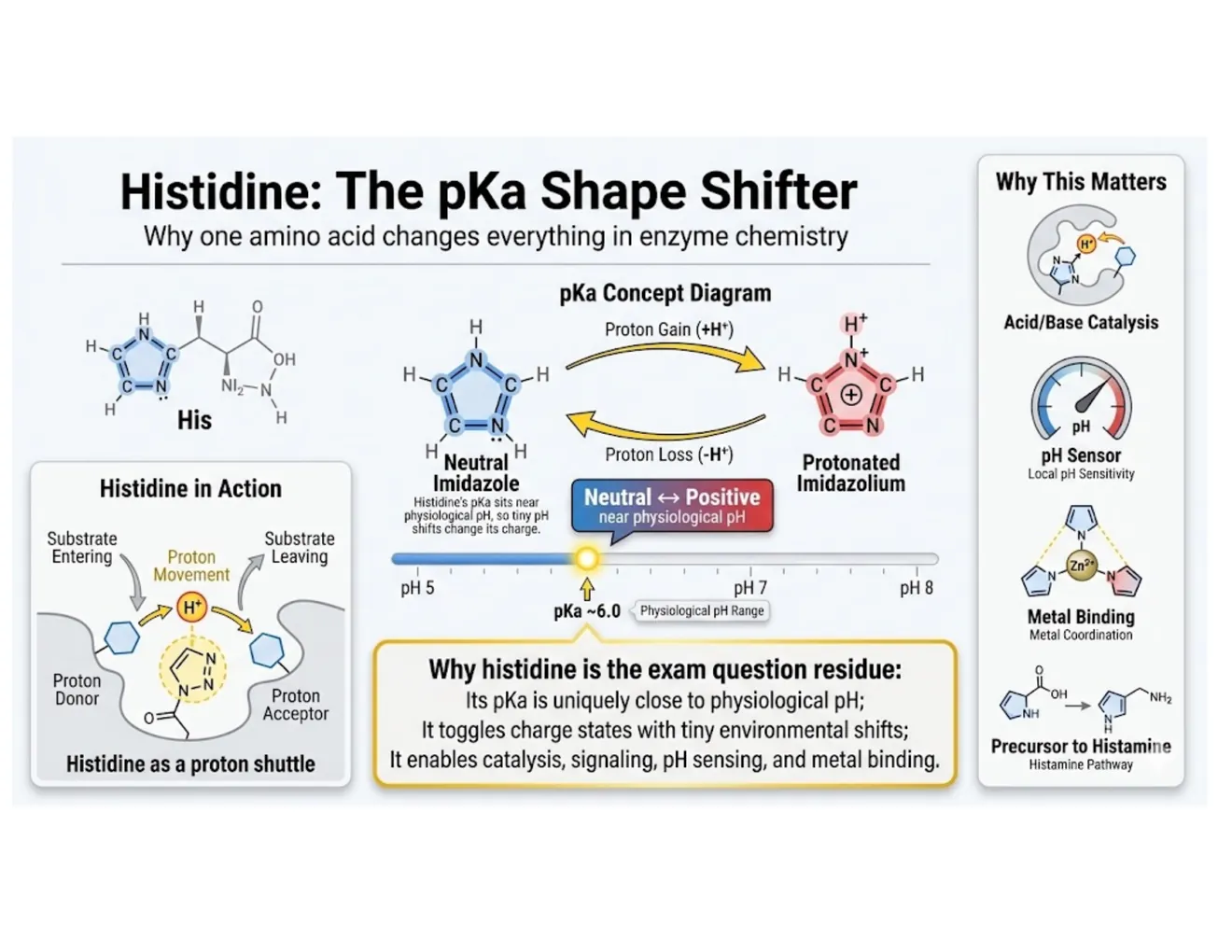

Seven side chains are ionizable — they can gain or lose a proton depending on the surrounding pH: Asp, Glu, His, Cys, Tyr, Lys, and Arg. These are the residues that form salt bridges, bind metals, and do acid-base catalysis. The standout is histidine. Its imidazole side chain has a pKa near 6, which sits closer to physiological pH than any other side chain. That one fact lets histidine flip between charged and neutral with a tiny shift in its environment — exactly what an enzyme needs from a residue that has to hand a proton off and take one back. It is the workhorse of acid-base catalysis, and the reason histidine turns up in active site after active site.
Reading the curve: titration, pKa, and pI

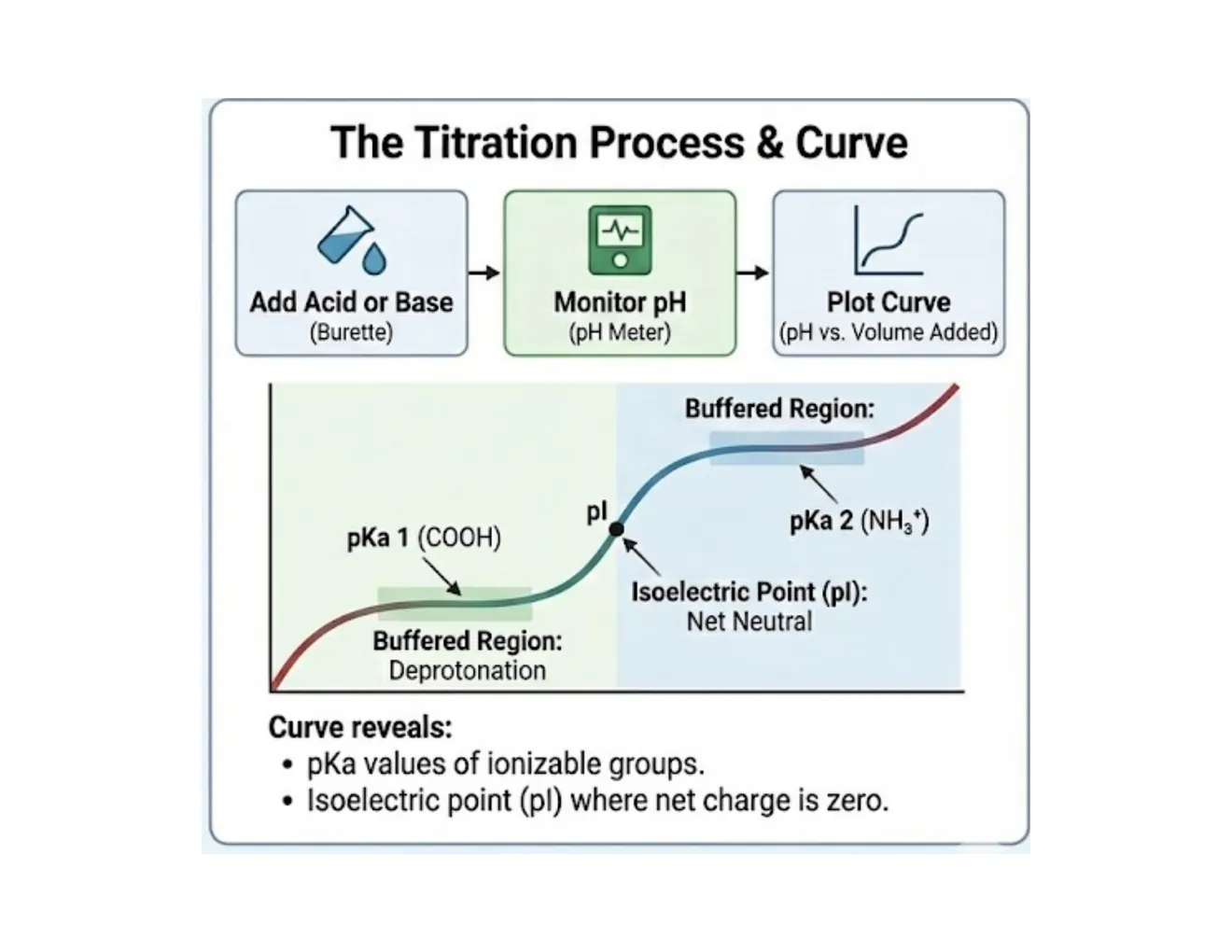

Add base to an amino acid drop by drop, track the pH, and you get a titration curve: a rising staircase with a flat plateau at each pKa and a steep jump between them. Each plateau is a buffering region, where added base barely moves the pH because a group is busy giving up its proton. The midpoint of a plateau — the half-equivalence point — reads the pKa straight off the y-axis.
Glycine, with two ionizable groups, has two plateaus: pKa₁ = 2.34 for the carboxyl, pKa₂ = 9.60 for the amino group. Between them lies the isoelectric point, pI = 5.97, the pH where glycine carries no net charge. Histidine, with its extra ionizable imidazole, has three plateaus (pKa₁ = 1.82, pKa₂ = 6.00, pKa₃ = 9.17) and a pI of 7.59. The extra wrinkle in the curve is the side chain earning its keep.

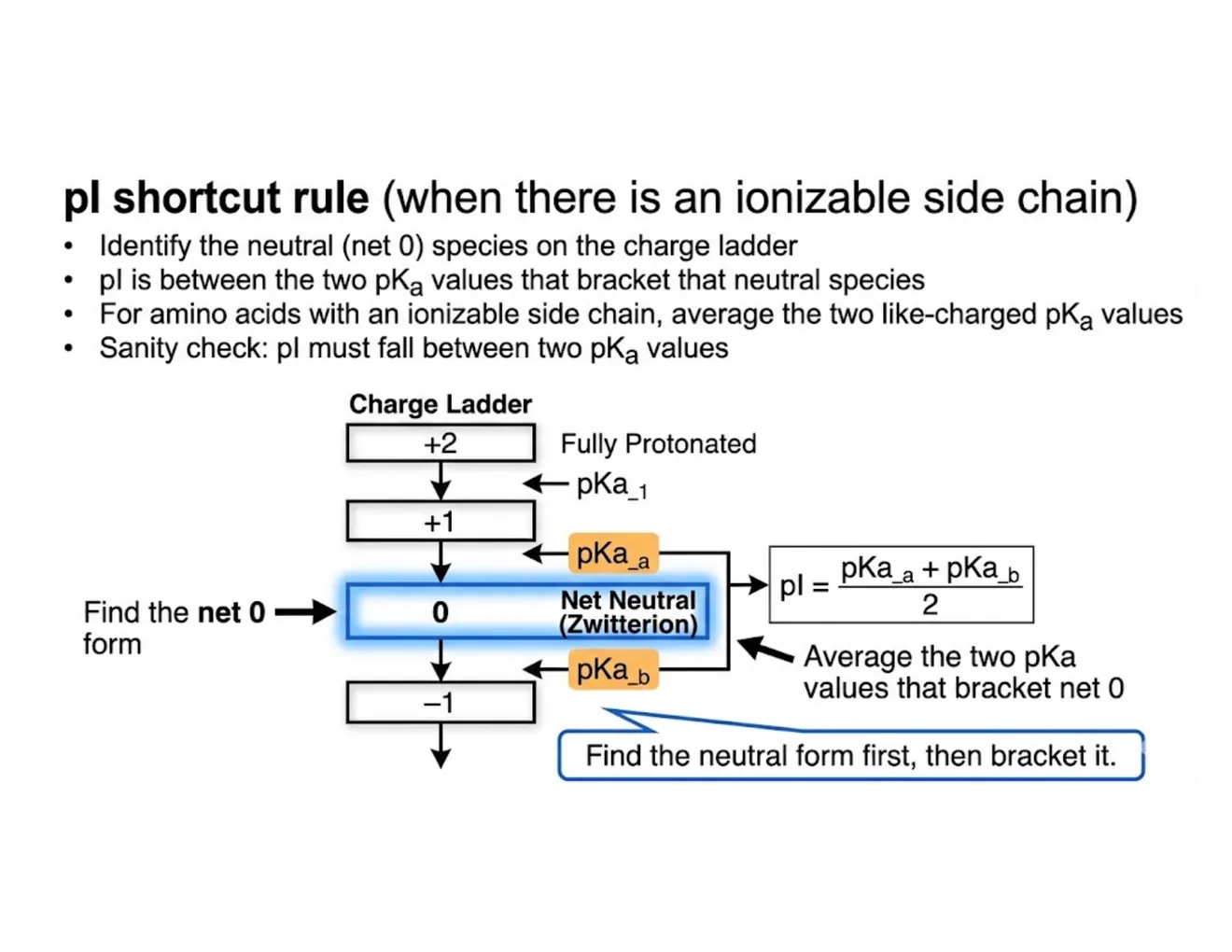

The shortcut for pI is worth committing to memory: find the form on the charge ladder that is net-zero, then average the two pKa values that flank it. For glycine the neutral zwitterion is bracketed by 2.34 and 9.60, so pI = (2.34 + 9.60)/2 = 5.97. Drag the pH cursor across the plotter above and it shows which species dominates and the net charge at every point. Push histidine’s imidazole pKa toward 7.4 and you can see for yourself why a catalytic residue wants its pKa near physiological pH.
The payoff: one swap, one property, a disease
Now the opening mystery resolves. In sickle cell disease, position 6 of the beta-globin chain carries a valine where a glutamate belongs. Glutamate is negatively charged and hydrophilic; it sits comfortably on the protein’s water-facing surface. Valine is hydrophobic. The substitution plants a greasy patch on a surface that should be wet, and under low oxygen those patches stick to each other, polymerizing hemoglobin into rigid fibers that deform the red cell into a sickle. One side chain changed from charged to greasy. That is the whole disease. The same logic — R-group property predicts behavior — runs from the membrane helix to the active site to the clinic.
Detecting and separating amino acids in the lab
The behavior in this lesson is read off two kinds of measurement. Titration turns charge into a curve. Add base in steps, plot pH, and the plateaus give you the pKa values while the net-zero point gives you the pI — the numbers that let you predict an amino acid’s charge at any pH. To detect amino acids, chemists reach for ninhydrin: it reacts with the free alpha-amino group and stains each one purple (proline turns yellow). To separate them, they reach for chromatography, which sorts a mixture by the same two side-chain properties this lesson is built on — charge and hydrophobicity. The chemistry you reason about on paper is the chemistry the assay reports back.
How we measure it
Titration to find pKa and pI
Add base in measured steps and track pH. Each plateau is a buffering region centered on a pKa; the steep jumps mark the equivalence points. The half-equivalence point reads the pKa directly, and pI sits at the pH where net charge is zero — the two numbers that fingerprint an amino acid's acid-base behavior.
Assigning chirality (the CORN rule)
View the alpha-carbon with the H pointing toward you and trace CO → R → N around the carbon. Clockwise reads L, counterclockwise reads D. Commit to one camera angle: look from the opposite side and the handedness flips. Proteins use only L.
Detecting amino acids (ninhydrin and chromatography)
Ninhydrin reacts with free alpha-amino groups to produce a purple color (yellow for proline), so a separated mixture lights up spot by spot. Paper or ion-exchange chromatography sorts amino acids by charge and hydrophobicity — the same two side-chain properties this lesson is built on.
